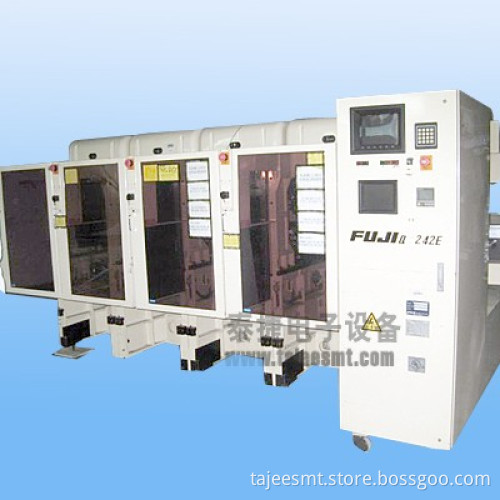

FUJI QP242E SMT Machine

FUJI QP242E SMT MACHINE
Product Details:
Configuration:
Module 1 Model: FI-602, CCD (1206 to 28 X 28mm)
Module 2 Model: FI-602, CCD (1206 to 28 X 28mm)
Module 3 Model: FI-604, Linescan (1 X 1mm to 74 X 74mm)
- Front device
- Index type nozzle
- 600mm rectangular and odd-shaped parts, CSP's
- 21 feeder slots
Model Specifications:
Modular High Speed Pick and Place
The QP242 is designed to be a modular, high speed, fine pitch Pick and place SMT machine. The modularity of the machine enables the user to match the machine specifications to the product and production needs. The machine can be purchased with one to to six different 'modules' per control unit making it a highly flexible pick and place SMT machine.
The user can select one of the six different modules for the machine. Each module is designed to handle a specific type of SMT component size from 1005 to 74 X 74mm QFP's, BGA and flip chips.
Specifications
-SPEED from 2, 000CPH
-MAX PCB 457 X 356 MM
-Component range 1005 to 74mm sq
-Speed: 2, 000 up to 14, 000 cph
-Modular multi-purpose machine
-Up to six modules
-BGAs, CSPs, CCGAs and QFP up to a max height of 25.4mm
-Accuracy: Chips +/- 0.1mm, Fine pitch +/- 0.04mm
-Options: MTU7; Type 7 camera; STU
