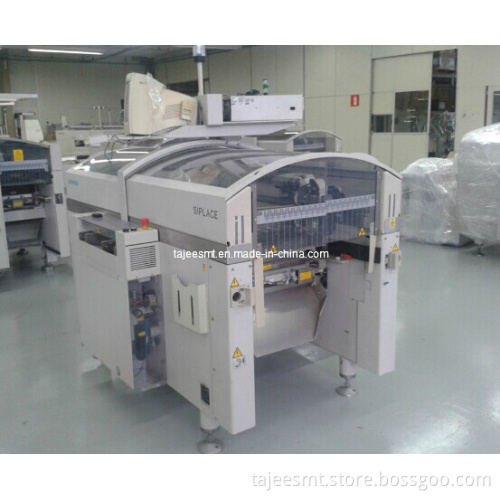

Siemens: Siplace S27 HM

Siemens: SIPLACE S27 HM
Product Details:
Fully operational, tested and serviced.
Serial Number: 330-12027279
Year of Manufacture: 2004
Placement Count: 87, 653, 835
Head Type: RV12 C&P head X 2
Component Camera: 24 X 24 mm2
PCB Camera: 5.7 X 5.7 mm2
Flow direction: Left-to-Right, Dual-lane
Conveyor width: Min 50mm to Max 216mm
Machine firmware version: 505.05 VER 38
Vision firmware version: 2321M
Voltage: 220V 50/60Hz
For detailed specifications, please refer to "Specs".
Model Specifications:
The high-speed SMD placement
System SIPLACE S-27 HM COM-
Bines high placement speed with
Flexibility and accuracy. In contrast
To classic chipshooters, a Collect
& Place procedure is applied here.
SIPLACE S-27 HM placement ma-
Chines are equipped with two X-/Y-
Main gantries. Each gantry featu-
Res a star-shaped Collect & Place
Placement head with either 12
Or 6 nozzles.
The SIPLACE family of placement
Machines offers the right product
For each purpose from the very
High-speed placement system
SIPLACE HS-60 to the high-speed
SMD placement system SIPLACE
S-27 HM and the flexible place-
Ment systems SIPLACE F 5 HM
And SIPLACE HF
