High Quality SMT Screen Printer DEK Infinity with Good Price

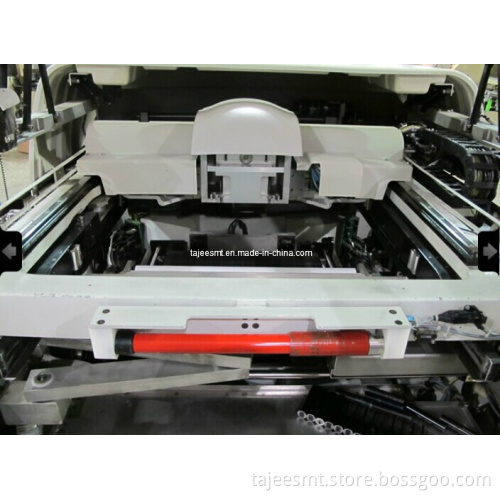

DEK Infinity
Details
Green Camera
Blue USC with Vacuum
220 VAC Single Phase 8A
Specifications ( See Details above for installed options )
Minimum Board Size: 50 X 70mm
Maximum Board Size: 510 X 508mm (610 X 508mm Optional)
Board Thickness: 0.2 - 6mm
Warpage: Up to 8mm including PCB Thickness
Dek Infinity Vision System: Cognex 8100
Fiducials: 2 or 3
Fiducial Size: 0.5 - 3mm
Alignment: Stencil to Board Repeatability 2.0 CPK @ 25 microns
Cycle Time: 8 Seconds
Print Speed: 2 - 150mm/sec
Print Pressure: 0 - 20 kg Software Programmable
Print Gap: 0 - 6mm
*DEK Infinity Options (See machine Details for installed options)
ProFlow Print Head
2D Inspection (Volume, Alignment, Bridging, Blockage, Coverage)
Tooling: Autoflex, Multiflex or Manual Pins
Paste Dispenser
Enviromental Control Unit
*Facilities
Voltage: 110 to 240 VAC Single Phase
Amperage: 24 AMPS at 110 VAC or 10 AMPS at 240 VAC
Machine Weight: Approx. 800 KG (1760 lbs)
Dimensions: 1314mm X 1325mm X 1592 Tall
