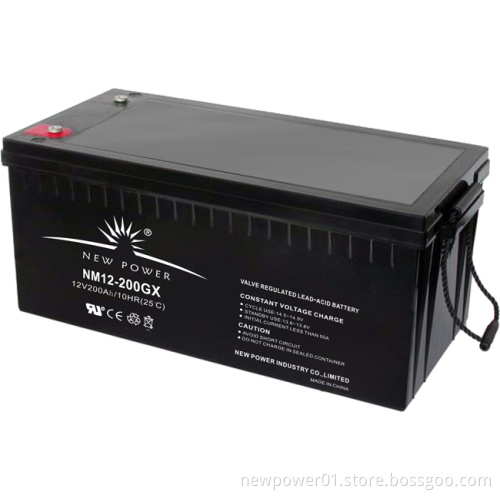

12V200ah Deep Cycle Battery/AGM/ Gel Battery (NM12-200GX)

Factory Appearance real map

Factory environment layout


12V200Ah AGM Gel Battery for UPS/Soalr System
NM12-200GX

Specifications
Nominal Voltage: 12V
Number of Cell: 6
Capacity: 200Ah (20hr rate to 1.8V/cell)
Dimensions: 522*238*218mm
Total Height: 223mm
Weight Approx: 61kg
Terminal: F12

Features & Benefits:
1. The colloid battery namely electrolyte liquid contains gaseous silicon dioxide, which shows a gel state characterized by no flow consistency, no leakage and no acid /liquid dividing layer, allowing the polar plate perform consistently, The battery uses excess electrolytes to avoid drying up of the batter, overcharging, and heart loss. The battery can be put in multiple positions without worry of leakage.
2. Longer usage life of cycle and trickle.
3. Extremely low discharge rate. If battery is put at 20 degrees centigrade for 2 years, then its self-discharge rate will be less than 40%.
4. Extremely good discharge recovery ability
5. Gas compound efficiency higher than 99%
6. Efficiently prevents heat loss
7. Adapts well in different temperature and charge and discharge conditions. It has a long cycle and trickle life evening cases of improper use.

Applications:
Fire & security systems, Uninterrupted power supplies; Golf cart, Electric vehicle; Electric powered bicycle and wheelchairs; Marine equipment; Communication equipment; Power tools; Solar powered systems; Telecommunication systems; Urgent light systems; Measurement systems.
