Product Description

Our products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, walkmans, wireless microphones, medical equipment and other electronic products.

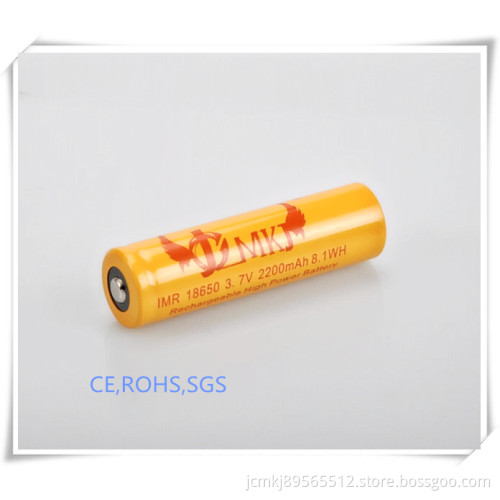

JCMKJ Lithium battery 18650-2200MAH 3.7V High Cap

Specifications:
1. Capacity:
Nominal: 2, 230mAh
Min.: 2, 200mAh

2. Dimensions:
Diameter: 18+/-0.2mm
Height: 65+/-0.2mm

3. Features:
1) Lithium ion 18650 cylindrical rechargeable battery
2) 3.7V 2, 200mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time.

Li-ion Battery 18650-2200mAh, High Cap, Power Bank, E-Cigarette Battery, Power Bank, Lithium 18650 Battery Pack, High Cap, Flashlight Battery, Li Ion Battery

NO.	Item	Specifications
1	Typical Capacity	2230mAh @ 0.2C Discharge
1	Minimum capacity	2200mAh @ 0.2C Discharge
2	Nominal voltage	3.7V
3	Standard Charge	CC/CV,0.2C5A, 4.20V
4	Standard Discharge	CC,0.2C5A, 3.00V
5	End-of-charge Voltage	4.20V±0.05V
6	End-of-charge Current	0.01C5A (At CV mode)
7	End-of-discharge Voltage	3.0V
8	Charging Time	8.0hours(standard charge)
9	Quick Charge Current	2200mA(1.0C 5rate)
10	Quick Discharge Current	2200mA(1.0C 5rate)
11	Max Discharge Current	6600mA (3.0C 5rate)
12	Initial Impedance	Max:65mΩ
13	Weight	Approx:44±1g
14	Operating temperature	Charging: 0~45 C Discharging:-20~60C
15	Storage temperature	-5~35 C
16	Storage Humidity	≤75% RH
17	Appearance	Without scratch, distortion, contamination and leakage
18	Standard environmental condition	Temperature :23±5 C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
