Product Description
Product Description

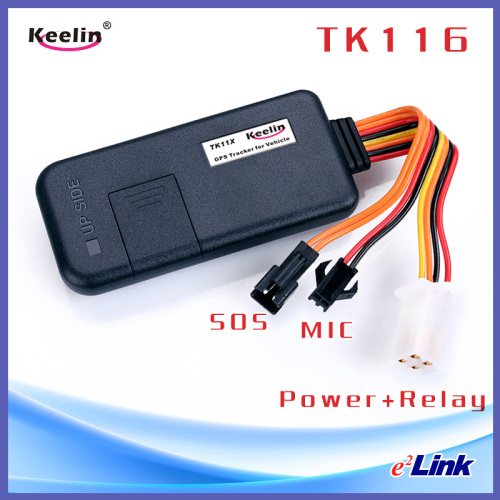

Multifunctional Automobile GPS Tracking Device

Multifunctional Automobile GPS Tracking Device, TK116 GPS vehicle trackers can help you locate and track your vehicles including cars, trucks etc. The trackers have many functions such as SOS alarm, real-time tracking, and voice monitoring, two-way communication and durability. You can move your tracker from car to car. Or you can track your vehicle even if it`s being stolen.

TK116 is a representive product of EELINK COMMUNICATION.  With an annual million units sold in North America , Europe and Southeast Asia. it's a Multifunctional Vehicle GPS Tracker with very smart size.
Typical application areas : logistics enterprises, fleet management, bus management, insurance, power, oil, telecommunications, taxi, car sales, car rental, vehicle maintenance, technology researchers.

If you are finding a Multifunctional Automobile GPS Tracking Device, Automobile Tracking System, Car Monitoring Device, Real Time Vehicle Tracking Device, TK116 is your best choice .


PRODUCT FEATURES:

■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
■ Wide Input Voltage:6-36V DC.
■ GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
■ Keelin Tracking Service Platform, Keelin APP Client, SMS query
■ Built-in battery, Power disconnect alarm & Low battery alarm.
■ Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
■ Supports ACC status checking and vehicle status notifying.
■ Relay to remotely control the vehicle..
■ SOS button for SOS call.
■ MIC to remotely monitor.
■ Multiple protocol support, can be integrated to platform of customers
■ OTA upgrade firmware.

PLATFORM/APP:
■ Real-time Tracking
■ Route Play Back
■ Cut Oil (Need Relay)
■ SOS Alarm (Need SOS Cable)
■ Listen (Need Microphone)
■ Vibration Alarm
■ Collision / Falling Alarm
■ Speed Alarm
■ Geo-fence Alarm
■ Power Disconnect Alarm
■ Low Battery Alarm

FUNCTION EXTENSION:
■ 1. Default interface: Microphone input port for remote monitoring
■ 2. Can be extended: ADC input port , used for temperature and oil detection
■ 3. Can be extended: External lithium battery port ,used for long battery life

■ 4. Can be extended: UART expansion port (TTL level), RS232 serial port expansion application

Multifunctional Automobile GPS Tracking Device

Multifunctional Automobile GPS Tracking Device
Automobile Tracking System
Automobile Tracking System
Automobile Tracking System
Car Monitoring Device
Car Monitoring Device
Car Monitoring Device
Real Time Vehicle Tracking Device
Real Time Vehicle Tracking Device
Real Time Vehicle Tracking Device


Hardware Specification
Communication System GPRS/GSM
Frequency GSM 850/900/1800/1900MHz

Networks GPRS
Output Power Class 4 (33dBm ±2dB) for GSM 850/900MHz
Class 1 (30dBm ±2dB) for GSM 1800/1900MHz

Receive Sensitivity -106dBm/GSM 900MHz,GSM 1800MHz

GPS
GPS Chip MTK high sensitivity GPS chip
Frequency L1,1575.42MHz C/A code
Channels 66
Location Accuracy <10 meters
Tracking Sensitivity  - 165dBm
Acquisition Sensitivity  - 148dBm
Location time Hot start:≤2sec(open sky)
Cold start:≤35sec(open sky)
Main Specifications
Monitoring Scope ≤ 5M
Antenna Built-in GPS ceramic antenna; GSM quad-ban antenna
LED Indicator GPS(blue), GSM(green), Power(red)
Operating Voltage 9-36VDC
Operating Temperature -20℃~70℃
Operating Humidity 5%~95%,non-dense
Built-in Battery 450mAh/3.7Vindustrial lithium polymer battery
Standby 4 hours
Dimension 87(L) ×41.6 (W) ×12 (H) mm
Weight 45g

Ⅹ. Trouble shooting
10.1 Cannot connect to the position server
The terminal is never online on the position server when installed at the first time. Please check the terminal:
1)If the power cables are wired correctly? Pay attention to not connect them to the controlling cables of the vehicle.
2)If the SIM card is installed correctly? Please refer to the installation instructions.
3)Check the status of the LED indicators. If the terminal is OK, the red LED and the blue LED will intermittently flick.
4)Inquiry the parameters of terminal via commands and check the accuracy of the parameters.
10.2 Show offline status on the position server
First check if the LED indicators are OK, if cannot check them, you can check the SIM card following next steps:
1)call the SIM card of the terminal and check if you can hear the connect ring.
2)Check if the vehicle is in the area where there is no GSM signal.
3)Check if one terminal or all terminals are offline in the area where terminal is offline. If all terminals are offline, you should ask the network operator. If the network is OK.
4)Check if the SIM card has enough balance.
5)If the terminal becomes offline on the last day of one month, please check if GPRS is close.
6)Inquiry the parameters of terminal via commands and check the accuracy of the parameters.
10.3 Cannot position for a long time
If the GPS is active, but the terminal cannot be positioned for long time, please check the terminal:
1)If the vehicle is in the place where there is no GPS signal.
2)The upside of the terminal should be installed with face toward the sky.
3)The GSM and GPS signal may be weakened if the terminal is installed in the place with electromagnetic wave absorption material(such as metal blocks), special attention should be paid if there is metal thermal insulation layer or heating layer on the front windshield, so that the position accuracy will decline, and the severe ones will not be positioned.
10.4 Position drift is serious
Serious position drift will be found in places where GPS signal is poor. Please drive the vehicle to the open places.
10.5 Instructions receiving abnormally
1)Check the instructions format.
2)Check if the vehicle is in the places where there is GSM signal.
3)Check if the SIM card is properly installed.

Platform

You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience
Accessories (Optional)
Relay/ Microphone/SOS cable
Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
Customization
Shenzhen Eelink Communication Technology Co. Ltd is a creative hi-tech company which focus on GPS tracker R&D and market leading. We offer customization according to different customer's requirements...
Case one
We customize one OBD tracker to provide complete tracking solutions for a well-known company. This model combined hardware to software, including base positioning service platform and value-added positioning service platform. Users can quickly track, position their cars through this platform
Case two
We design and customize one tracker used in food transportation industry for an American Logistic Food Transportation Company. This tracker monitors the food temperature all the way during transportation.
Case Four
Customize GPS phone for kids with multiple function of positioning, remote monitoring and radiation protection.
