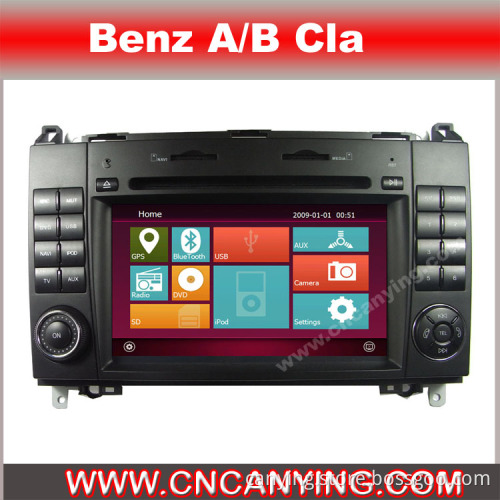

Special Car DVD Player for Benz a/B Class with GPS, Bluetooth. (CY-9301)

Benz A/B Class W169,W245)



Android system optional NOW

General
1 Special car dvd player for Benz A/B Class (W169;W245)
2 2 din iso in-dush dmounting.
3 Beautiful picture osd menu function,
4 Display size:16:9 TFT high definition lcd
5 Built-in functions: dvd, dvd-r, dvd-rw, mpeg4,mp3,vcd,cd, cd-r,cd-rw, fm,am,4x40w amplifier,
6 Front usb ,ipod,sd,aux port.
7 Radio receiving:high sensitive fm/am tuner 30stations(am 12 / fm 18) restorable
8 Car backing display: it is connected to the rearview camera
9 Shock proof memory: 5 seconds esp electronic aegis
10 Remote controller: full function remote operation
11 Video output/input : two video output,two video input (one video input for rear view system )
12 4-ch rca output
13 Working temperature:-0--+55
14 Power supply:dc-10-14.6v
15 Rds function
16 Touchscreen panel
17 Ipod can charge up when it playing ipod or iphone.
18 Support chinese,english language menu.
Gps navigation
1 Wince 6.0 operating system,samsung 2451 high speed mcu.
2 Built-in 128m ddr2 sdram,max speed to 667mhz.
3 SirfIII secondary planet incept module;position accuracy to 5meter,
4 20 channel gps receiver
5 Can supports igo/tomtom/router66/papago...map of the world.
6 Dual zone function,can navigation and hear music at the same time.
DVB-T
1 Constellation qpsk,16qam,64qam ,channel band width 6m/7m/8m
2 High senstivity incept(-78db~-20dbm). .
3 Over 1000 channels tv & radio programmable
4 Channel list editing,favorite channel list editing
5 Support english/french/spanish/swedish/portuguese....
6 Can use to all europe and australia area.
Bluetooth
1 requires btm732 bluetooth module ;
2 bluetooth version 2.0;
3 wireless hands free operation with caller id
4 supports hs/hf,a2dp,avrcp,opp profiles.
5 supports phone book,can look over dialed ,
recelved ,missed, call phone number.
TMC
1 using silicon lab si4703-gm chip and silicon lab
c8051f331 mcu.
2 supports igo/tomtom map;
TMC
1using silicon lab si4703-gm chip and silicon lab
c8051f331 mcu.
2supports igo/tomtom map;
