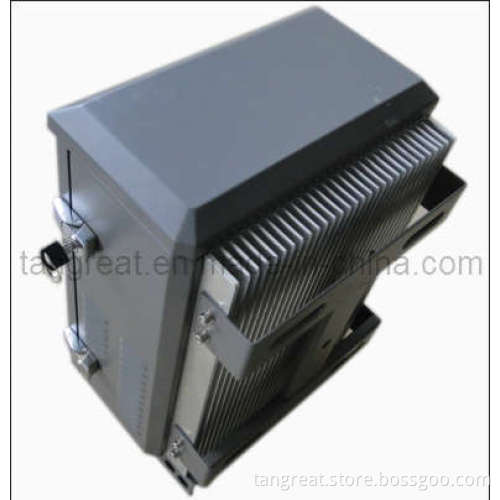

High Power Prison Signal Jammer for Outdoor Use

Cover interface standards:

CDMA800: 850-894 MHz,
GSM900: 925-960 MHz
GSM1800-1900: 1805-1990MHz,
3G: 2110-2170MHz,
WIFI: 2400-2500 MHz
CDMA450 (just for Europe customer)
You can select four or five bands of above frequency bands in a jammer

Output power: Up to 220--280 watt
Jamming range: UP to 200~500M [the signal strength<=-75dBm in the given area.
Output power of each band is adjustable.

Power supply: 50.60Hz/AC100 ~ 240V transmitting to DC 28V.

System Advantages
1. Each unit can jam up to five frequency bands simultaneously.
2. Continuous operation, even in hot climates, with no time limit.
3. Secure design to avoid sabotage.
4. (VSWR) circuit protection to ensure system will not burn out should there be antenna short circuiting or disconnection
5. Adjustable RF power output level.
6. Antenna type options

TG-101MH Optional Features
1. Selection of antennas to provide more flexibility regarding jamming coverage.
2. Special additional housing for all weather protection.
3. Can use the UPS and battery
