Basic Info

Product Description

Basic Info.

Model NO.

MV2025TBHE-AG

Specification

SGS, ISO

Trademark

ALLTECH

Origin

Shenzhen, China

Production Capacity

5000pieces/Year

Product Description

Functions & Features:
Super low latency
ABS/AES encryption
Duplex-audio communication and GPS functions
Working frequency adjustable within specified range
Built-in high performance power amplifier
Audio and video signal simultaneously input
One-channel video input
Left/right channel audio and unbalanced stereo input
1.25/2.5/6/7/8MHz multiple bandwidth output
Transmitter power output adjustable
GFSK digital audio modulation, good voice quality with internal en/decryption
Audio frequency adjustable within built-in 64 channels and 24 addresses
Fully-enclosed waterproof case, dustproof and good impact resistance

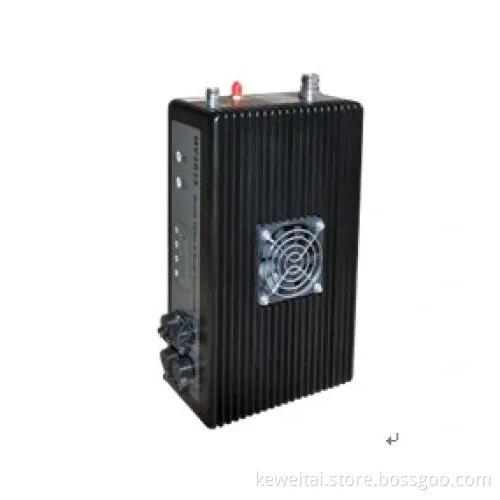

Cofdm Wireless Video Transmitter OEM China No MOQ

Specifications:

Power Supply
Workinh voltage V			DC12V~DC16V
Working current A			≤2.8A@DC12.5V
Video Transmission
Frequency output range		300MHz~450MHz,560~760MHz or user customized
RF bandwidth MHz		1.25/2.5MHz or 6/7/8MHz
Power output		21~36dBm power output adjustable with 1dB step
C/N		≥28dB@32dBm
SHG		>52dBc
Encryption		AES/ALLTECH Basic scrambling
Modulation		COFDM
Constellation		QPSK/16QAM @ 1.25/2.5MHz QPSK/16QAM/64QAM @ 6/7/8MHz
FEC		1/3, 2/3 @ 1.25/2.5MHz 1/2, 2/3, 3/4, 5/6, 7/8 @ 6/7/8MHz
Carrier		2K
GUI	1/4, 1/8, 1/16, 1/32 optional
Video encoding	MPEG-2/MPEG-4
Video input level	1~1.2Vp-p@75Ω
Video input format	PAL/NTSC
Video resolution	720x576(PAL) 720x480(NTSC)
Video white bar amplitude mV	650~720mV
Video synchronous amplitude mV	260~275mV
Video amplitude-frequency characteristic dB	0~4.8MHz				-0.5~1.5
	5.5MHz				-4.0~1.5
Audio input	Left/right channel, stereo
RS232 control interface	Standard RS232 level, 9600, 8, N,1
RS232 data interface	Standard RS232 level, support 1200~115200
Delay	60ms
Audio Receiving
Audio Rx frequency range			470.05~479.950MHz, factory setting: 479.950MHz
Audio Rx sensitivity			≤-111dBm
Audio Tx modulation			GFSK
Frequency step			150KHz
audio decoding bitrate			4800bps
Audio output			2.1Vp (open circuit output)
GPS Receiving
Signal Receiving				L1(1575.42MHz), C/A code
Communication protocol				NMEA0183
Sensitivity				-165dBm
Data baudrate				9600bps
Data refresh rate				1Hz
GPS protocol				NMEA0183-4800bps
Environment
Protect standard			IP66, dustproof and rainproof
Working temperature			-25°C~55°C
Storage temperature			-40°C~70°C
Appearance
Dimension				238mm×155mm×78mm
Weight				2.5Kg (without frame carrier and battery)
