Air Speaker with Light Alarming Unit with Drone for Security and Defense

Air Speaker with Light Alarming Unit with Drone for Security and Defense

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

SG-480M-A

Dimension

200mm×220mm×150mm

200m: Max 65dB

100m: 80 dB

50m: Max 90 dB

25m: Max 120 dB

MOQ

Transport Package

Box

Origin

China

Product Description

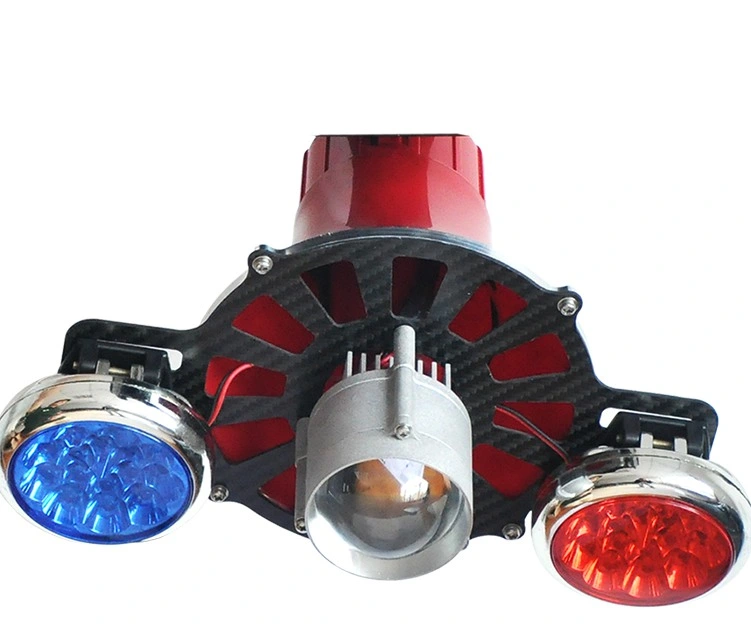

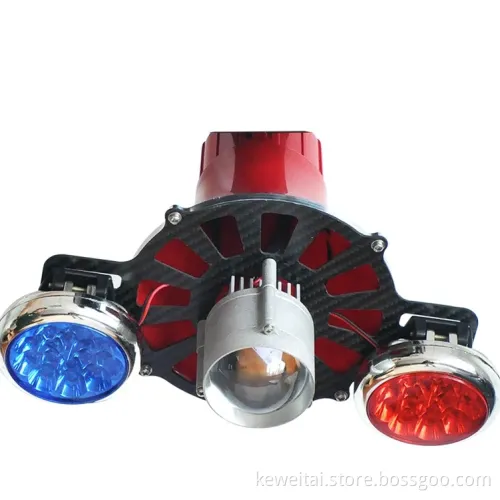

Air Speaker with Light Alarming Unit
SG-480M-A

As an air speaker and communication unit mounted with Unmanned Aerial Vehicle( UAV), work height up to 50-100 meters and communication distance more than 500 meters, the air speaker with light alarming unit makes great effect on such occasions as forest fire prevention, fire rescue, disaster search and relief, traffic security, forest care and so on.

power source
work voltage   DC12V~16.8V
work current 1.4A@12V( no speaker);2.5A(with speaker)
Air speaker power   25W Max 25W

Loudspeaker
voice transmission hearable distance
200m: Max 65dB; 100m: 80 dB; 50m: Max 90 dB; 25m: Max 120 dB
The drone itself will cause certain noise when in fly; the loudspeaker has directional feature;
The dB value can't be fully used for evaluating the features of loudspeaker.

Voice work frequency
480MHz or 433MHz(optional)
Alarming light frequency 12W

Appearance
Weight   0.85Kg
dimension 200mm×220mm×150mm

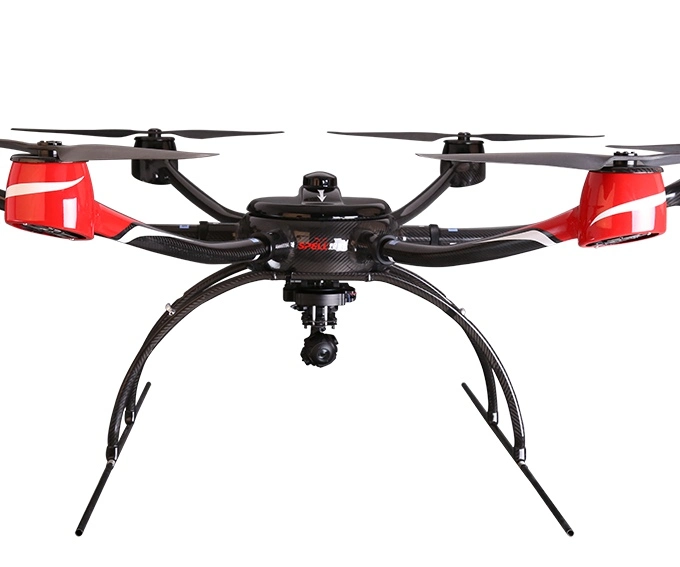

KWT-X6L Drone

Air Speaker with Light Alarming Unit with Drone for Security and Defense

Features

Carbon fiber integrated molding with high rigidity and light weight; supports more than 65 minutes flight time with 500g payload

Innovative upturned arm design for flying stability and good strength, ensuring wind tolerance up to 14 m/s.

Detachable arms structure, quick plug-in design, get ready to fly within 5 minutes.
Full HD 1080i/P real time video transmission, supports zoom, thermal, wide angle camera and so on payloads.
Highly integrated rainproof gimbal unit with good rain performance, able to fly in the rainy day
Intelligent flight control system with manual precise control and autonomous flight mode
Finite difference GPS with high anti magnetism performance for accuracy position

Technical Parameters
Diagonal wheelbase	1600 mm
Max wingspan	2323+/-20mm
Standard take-off weight	11.5+/-0.2 kg
Max take-off weight	16+/-0.2kg
Max payload weight	≥5 kg
Flight time	≥65 min (@11.5kg)
Wind loading rating	13.9~17.2m/s
Max flight speed	15 m/s
Relative flight speed	3000 m(plain)
Max working altitude	5000 m
GPS position accuracy	vertical: ±1.5 m horizontal: ±2 m
Remote control distance	7km( up to the environment)
GS control distance	10 km( up to the environment)
Center Frame Packing Case Dimensions	1150 x 440 x 500 mm
Frame Arm Packing Case Dimensions	1120 x 540 x 380 mm

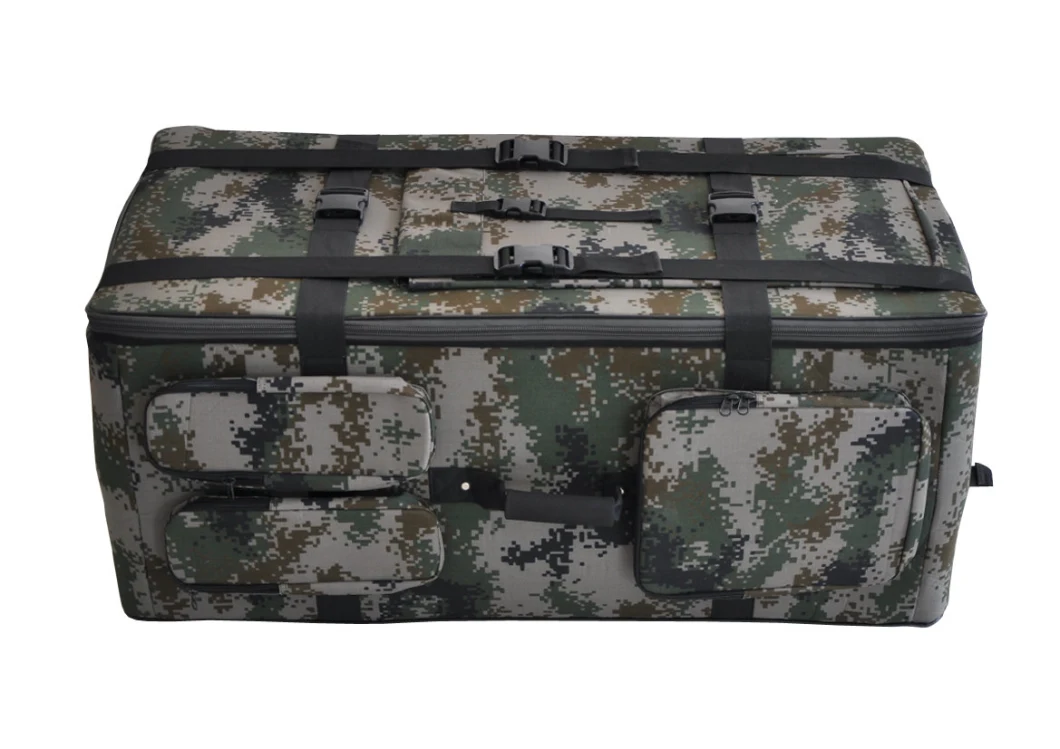

Package:

Air Speaker with Light Alarming Unit with Drone for Security and Defense
