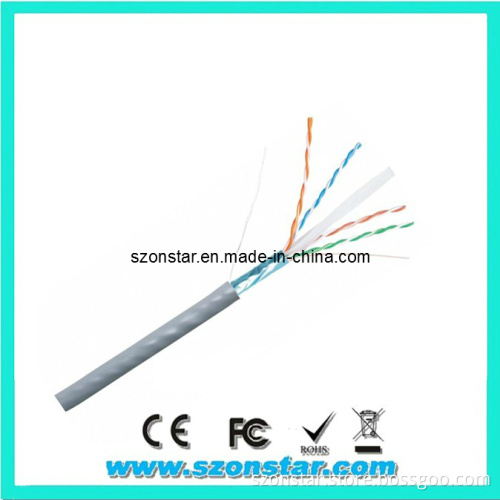

CAT6 LAN Cable UTP/FTP/STP/SFTP Network Communication Cable
- Payment Type:
- T/T, Western Union, Paypal
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen China |
|---|---|
| Payment Type: | T/T, Western Union, Paypal |
Specifications
1.Cat 5e LAN Cable For Internet Connection
2.UL CE ROHS ISO9001 SGS certification
3.FLUKE DSP-4300 pass
4.UTP/FTP/SFTP
Name of cable UTP4CAT5E24AWG Cu:
Description
Cable type and number of pairs: cable UTP (unshielded twisted pair -- unshielded twisted pair) to the internal pads, 4 pairs (solid),
Category 5e.
Specifications
Conductor: bare copper wire O0.51 ± 0.01 mm, 24 AWG
Insulation: High density polyethylene, minimum thickness of 0.18 mm
Conductor diameter 0.9 ± 0.02 mm
4 twisted pairs are covered with PVC jacket (minimum thickness of the shell 0.4 mm)
The external cable diameter of 5.1 ± 0.2 mm
bending radius: 8xO during installation, 6xO with vertical
Cabling, 4xO the horizontal cabling
Standard packing: 18.5 x 37.5 x 36.5 cm (W x H x D) - 305 m
Weight without cable, weight: 9.7 kg
Cable Weight with packaging: 10.5 kg
Weight 1 km of cable: 31.8 kg
Operating temperature: -20 ° C - +75 ° C
Fire: CM
Standards: UL444/UL1581, TIA / EIA 568B.2
Conductor resistance at 20 ° C 9.38 Om/100 m
DC Resistance Unbalance 5%
Capacitive unbalance pair to ground 330 pF/100m
Impedance 0.772-100 MHz 85-115 Ohm
Maximum working capacity of 5.6 nF / m
Spark Test 2.5 kV
