10/100m 16 Ports Managed Layer 2+ Industrial Ethernet Switch
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Shenzhen |
---|---|
Payment Type: | L/C, T/T |
Product Description
Product Description

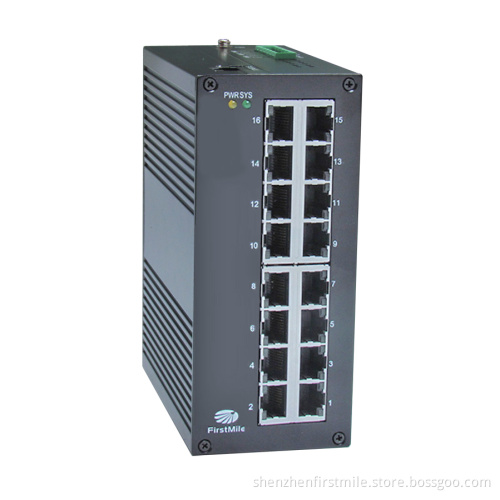

OnAccess706 is a managed Layer 2+ industrial Optical Ethernet switch with 16 10/100Mbps electrical ports. It is designed to meet the various industrial application needs, and provide an industrial Ethernet network communication solution with a high performance-price ratio. OnAccess 706' s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission. OnAccess706 also features powerful Web-based, CLI management capabilities, wide input range dual power supply and its support for DIN rail and panel mounting for installation in the industrial environment.
"Fast Ring Protection" (FRP) is a proprietary technology of Shenzhen First Mile Communications Ltd., designed specifically for industrial applications, to provide a fast Ethernet ring protection and recovery within 30ms. From the management console, users can choose any port (normal Ethernet port or trunk port) to form an Ethernet ring for faster recovery and wider bandwidth.
Features
Fast Ring Protection (FRP), Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) for Ethernet ring protection and quick recovery
4K VLAN, supports 802.1Q, port based, protocol based VLAN, as well as Generic Attribute Registration Protocol (GARP) and GARP VLAN Registration Protocol (GVRP) for flexible network planning and management
Dual power input for high reliability
LStatic and dynamic port aggregation for bandwidth management
Port rate limit, broadcast storm control, port mirroring, rich Quality of Service (QoS) features for data traffic control and management
Blackhole MAC address filtering, Static and dynamic MAC address management, for network security
802.1x, IGMP snooping, SNTP, SMTP
Web management interface for network management
SNMP V1, V2c, V3; Supports RMON statistics, history, alarm and event.
On-line firmware upgrade
Two privilege level accounts
Syslog
DIN rail or panel mounting for easy installation
Performance
IEEE Protocol:
802.3 10Base-T Ethernet
802.3u 100Base-TX fast Ethernet
802.3x Flow Control and Back Pressure
802.1p Class of Service
802.1Q VLAN Tag,
802.3ad LACP
802.1d STP
802.1w RSTP
802.1x
Non-blocking store-and-forward shared-memory switch architecture
MAC address: 8K
Network management: Web-based, CLI
Fast Ethernet Ring Protection: Recovery time within 30ms
Firmware upgrade: Web, online
Port Configuration
RJ45 Port:
Auto-negotiation 10/100Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5# with operation distance of less than 100 meters.
Power input: Dual DC or AC power supply
Environmental limits
Operating Temperature: 0° C~+60° C(Normal Temperature)
-40° C~+75° C(Wide Temperature)
Storage Temperature: -40° C~+85° C
Humidity: 10%~95%
Mechanical Dimension:
House Size: 138mm x 113.5mm x 60.5mm
House Protection: IP30
Installation: DIN-Rail or wall mounting
Ordering Information:
OnAccess706M, sixteen 10/100M RJ45 ports
"Fast Ring Protection" (FRP) is a proprietary technology of Shenzhen First Mile Communications Ltd., designed specifically for industrial applications, to provide a fast Ethernet ring protection and recovery within 30ms. From the management console, users can choose any port (normal Ethernet port or trunk port) to form an Ethernet ring for faster recovery and wider bandwidth.
Features
Fast Ring Protection (FRP), Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) for Ethernet ring protection and quick recovery
4K VLAN, supports 802.1Q, port based, protocol based VLAN, as well as Generic Attribute Registration Protocol (GARP) and GARP VLAN Registration Protocol (GVRP) for flexible network planning and management
Dual power input for high reliability
LStatic and dynamic port aggregation for bandwidth management
Port rate limit, broadcast storm control, port mirroring, rich Quality of Service (QoS) features for data traffic control and management
Blackhole MAC address filtering, Static and dynamic MAC address management, for network security
802.1x, IGMP snooping, SNTP, SMTP
Web management interface for network management
SNMP V1, V2c, V3; Supports RMON statistics, history, alarm and event.
On-line firmware upgrade
Two privilege level accounts
Syslog
DIN rail or panel mounting for easy installation
Performance
IEEE Protocol:
802.3 10Base-T Ethernet
802.3u 100Base-TX fast Ethernet
802.3x Flow Control and Back Pressure
802.1p Class of Service
802.1Q VLAN Tag,
802.3ad LACP
802.1d STP
802.1w RSTP
802.1x
Non-blocking store-and-forward shared-memory switch architecture
MAC address: 8K
Network management: Web-based, CLI
Fast Ethernet Ring Protection: Recovery time within 30ms
Firmware upgrade: Web, online
Port Configuration
RJ45 Port:
Auto-negotiation 10/100Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5# with operation distance of less than 100 meters.
Power input: Dual DC or AC power supply
Environmental limits
Operating Temperature: 0° C~+60° C(Normal Temperature)
-40° C~+75° C(Wide Temperature)
Storage Temperature: -40° C~+85° C
Humidity: 10%~95%
Mechanical Dimension:
House Size: 138mm x 113.5mm x 60.5mm
House Protection: IP30
Installation: DIN-Rail or wall mounting
Ordering Information:
OnAccess706M, sixteen 10/100M RJ45 ports
