Ge/Fe Ge/Fe Dual Rate Ethernet Fber Media Converter

OnAccess 2012 SM/MM, single fiber/dual fiber, OAM, GE/FE dual rate ethernet fiber media converter

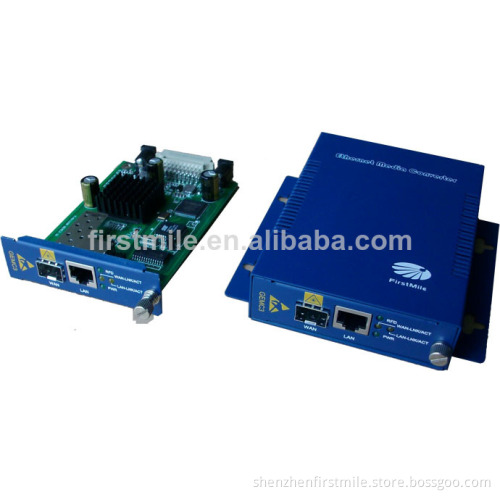

OnAccess 2012 managed media converter is another new member of the add-on modular of OnAccess 200X product family. It provides IEEE 802.3ah Ethernet OAM capabilities on SFP based 100FX/1000-X to 10/100/1000BT conversion platform. In addition to the OnAccess 200X chassis based configuration, OnAccess 2012 offers single-unit and in-pair standalone operation modes. The 802.3ah Ethernet OAM capabilities plus the Remote Fault Detection mode, dying gasp function and the IP ping function offer quick fault reporting on the management platform and the fast data path notification on the user side.


Features
Supports IEEE 802.3ah OAM options
Supports in-chassis, single-unit and in-pair standalone operation modes.
IEEE 802.3 100BASE-FX or IEEE 802.3ab compatible 10/100/1000BASE-T UTP or IEEE 802.3z 1000BASE-X converter with multimode, single-mode, single-fiber and different reach option.
Supports jumbo frame of up to 10K bytes.
Hot-swappable design with remote converter power dying gasp alarm.
In-band network management communication with special Ethernet packet to manage subscriber access network from carrier center side to terminal side.
Remote converter configuration and status monitoring using special in-band OAM frame and not consuming any IP resource and link bandwidth.
Sends and receives special OAM frames to center or remote side.
Programmable link fault pass-through (LFP) or remote fault detection (RFD) function.
Link transparency to indicate the link down from link partner with LED display for immediate visual status of each port.
SFP internal ID and status monitoring capability.
Wide Temperature models available with temperature range of 0 to +65o C.
Dual power supply option with power on/off alarm.
