Product Description

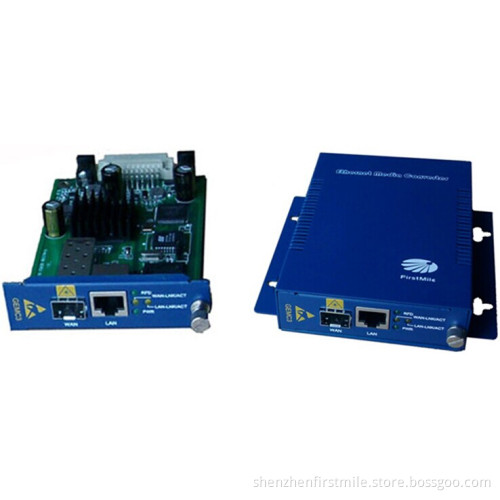

The OnAccess2012 family are GE/FE dual rate managed media converters. They are available with multi-mode, single-mode and single-fiber options with100BaseFX/1000Base-X SFP slot. The UTP port supports programmable 10/100/1000M and Half/Full-Duplex auto-negotiation with a software control UTP crossover switch option to eliminate the need for a crossover cable. It provides IEEE 802.3ah Ethernet OAM capabilities and supports jumbo frame of up to 10K bytes. With the support of 802.3ah Ethernet OAM capabilities, together with the Remote Fault Detection mode, dying gasp function and the IP ping function, OnAccess 2012 offers quick fault reporting on the management platform and the fast data path notification on the user side.

2gigabit Managed Fiber Media Converter Onaccess 2012

Features

Support IEEE 802.3ah OAM
IEEE 802.3u compatible 100BASE-FX or IEEE 802.3ab compatible 10/100/1000BASE-T UTP or IEEE 802.3z 1000BASE-X dual rate media converter with multi-mode, single-mode, single-fiber, dual fiber and different reach option.
Support jumbo frame of up to 10K bytes.
Support dying gasp alarm for power failure on remote converter
Remote converter configuration and status monitoring using special in band OAM frame and not consuming any IP resource and link bandwidth.
Programmable link fault pass-through (LFP) or remote fault detection (RFD) function.
Link transparency to indicate "link down" from link partner with LED display for immediate visual status of each port.
SFP internal ID and status monitoring capability.
IP ping function offers the fast data path notification on the user side.
Dual power supply option with power on/off alarm.
