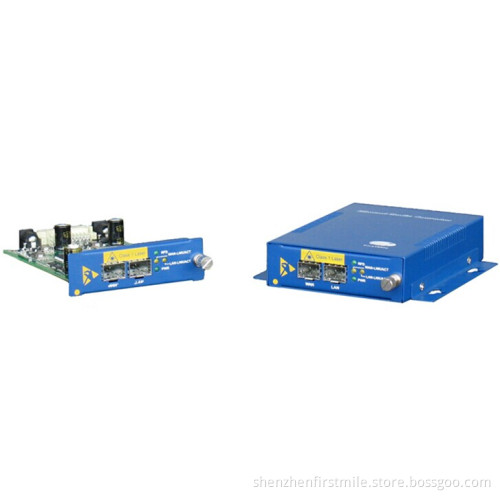

Gigabit Managed Fiber Media Converter Onaccess 2003

The OnAccess2003 family are dual 1000Base-X SFP slot Gigabit Ethernet managed media converters. They provide IEEE 802.1ag and ITU-T Y. 1731 Ethernet OAM capabilities, and support jumbo frames of up to 10k bytes. By choosing different types of 1.25Gbps SFP modules, you can realize multiple media converter options such as multi-mode, single-mode, single-fiber, dual fiber, UTP cable and different reach options. With the new Ethernet OAM capabilities, together with the Remote Fault Detection mode, dying gasp function and the IP ping function, OnAccess 2003 offers quick fault reporting on the management platform and the fast data path notification on the user side.


Features

Two SFP ports, support multiple media converter options such as multi-mode, single-mode, single-fiber, dual fiber, UTP cable and different reach etc
Support IEEE 802.1ag and ITU-T Y. 1731 Ethernet fault management and performance monitoring OAM functions.
Support up to 4 configurable MEPs with IEEE 802.1ag and ITU Y. 1731 naming format both on local and remote converters.
Support jumbo frames of up to 10k bytes
Remote converter configuration and status monitoring using special in-band OAM frame and not consuming any IP resource and link bandwidth
Link transparency to indicate "link down" from link partner, with LED display for immediate visual status of each port
Support dying gasp alarm for power failure on remote converter
SFP internal ID and status monitoring capability.
IP ping function offers the fast data path notification on the user side.
Remote Unit supports dual power supply option with power on/off alarm.
Programmable link fault pass-through (LFP) or remote fault detection (RFD) function.
Loopback mode to support loopback packet from center side to remote side.
