Eoc Switch Over Ethernet Over Phone Line Onaccess G4000t

Overview

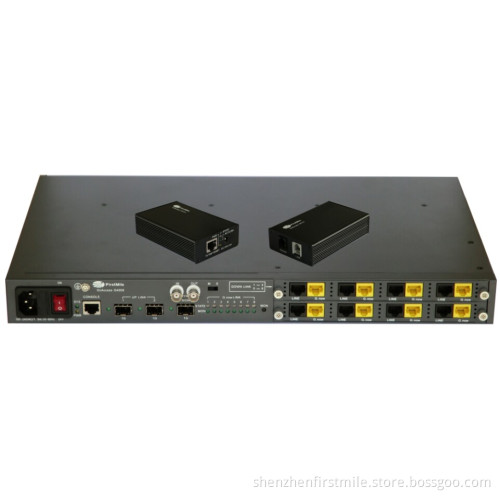

The OnAccess G4000 system contains the Headend Switch and the client device. It enables IP-based Video, Data and VoIP applications over existing twisted pair, it is the industry leading solution solving the secure delivery of IP Multiservice in a high density copper environment.

In a Fiber to the Building (FTTB) network solution, this device can deliver high-speed networking over legacy home wires with significantly lower installation and operating costs, the legacy home wires are those using coaxial cables, telephone lines or power lines. With scalability to over 40 units the OnAccess G4000 solution can scale to serve several hundred of end users connected on a copper network, OnAccessG4000 is the Ideal Solution for FTTH MDU Deployments.

Specifications

Egress /Ingress rate management control and broadcast storm control.
IEEE 802.1Q tagged VLAN, port based VLAN
Various QoS capability (IEEE 802.1p / port / Diffserv)
SFF 8472, Digital Diagnostic Monitor
Support port mirroring and port isolate
Support SNMP trap and SNMP client
MIB Counter
Upgrade firmware, backup configuration, restore configuration
Firmware upgrade via TFTP.
IGMP snooping for filtering multicast traffic
Perfect network management through web browser, CLI, Telnet /serial console.
Support SNMP v1/v2c/v3 for different levels of network management
Support three level user for manage
Supports 1Gbps PHY bit rate over single medium
State-of-the-Art LDPC forward error correction (FEC)
Remote configuration management integrated on-chip
Remote one-step firmware upgrade
Upload configuration files, notches management
Reliable HD IPTV and internet distribution
Unique solution for Last Mile, MDU & Campus
Up to 1 Km Bi-Directional solution with no need to upgrade/change the existing infrastructure
Up to 450 Mbps of actual throughput over twisted pair
Compliance & Certifications
ITU-T G. Hn standard functionality (G. 9960 system architecture and PHY layer, G. 9961 data link layer, G. 9962 management plane)
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.1p for CoS (Class of Service)
IEEE 802.1Q for VLAN Tagging
Certifications: Complies with UL, CE, CUL, FCC Part 15 Class B, EMC 89/336/EEC, ICES-003
