Basic Info

Place of Origin:	Guangdong
Payment Type:	L/C, T/T, D/P, Paypal, Money Gram, Western Union

Product Description

G.hn EOC Master

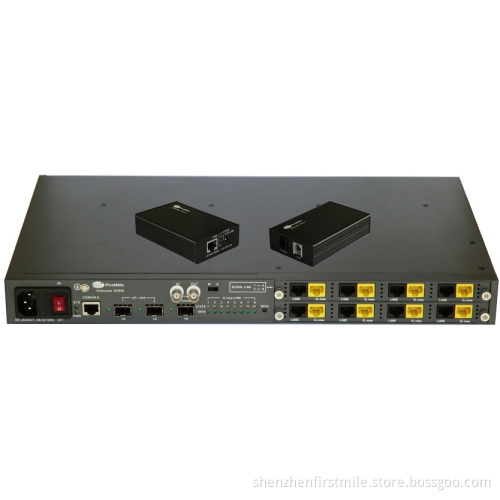

FirstMile OnAccess G4000C Series products are G.hn technology based Coax Ethernet Switch and Coax Converter.

ITU-T G.hn:Sponsored by Intel, released by ITU, and now promoted by Home grid Forum.

Unique advantage:Integrates legacy resources, like existing twisted pair, coaxial cable and power line to achieve a unified transmission, significantly to reduce costs of installation and operation

Applicatiopns:
1 Broadband access at existing buildings and home, provide the data transfer rate for up to 1 Gbit /s
2 Upgrading surveillance system from analog to HD IP with existing coax cable, which supports up to 2km transmission

Specifications
Environmental Specifications
Operating and Storage Temperature	0 to +55 degree, -25 to +70 degree
Input Voltage, Power Consumption	110-240 Volts AC (50-60 Hz)(for G4000C and G4000T), < 16W 5 VDC -2 amp ( for 4101C and 4101T), < 3W
Humidity	10%– 90% non-condensing
Dimensions, Weight	103.4mm x 66.0mm x 27.0mm, 0.19Kg (for 4101C)
WAN and Service Ports(OnAccess G4000C)
Console Port	a RS-232 connector for connection to a computer for console control /administration. The RS-232 console port can be used for accessing the OnAccess4000 CLI (command line interface) for out-of-band management.
COM Ports	8 x G. hn ports for data signal of 5~85Mhz, each port supports P2P and P2MP connections
IN Ports	8 x RF input port for CATV of 104~1000MHz
WAN Connectivity	2x1GE SFP ports for uplink aggregation
Ethernet SFP Ports	1 x 1GE SFP local system provision/monitoring port controlled by the multifunction control button
WAN and Service Ports( OnAccess G4101C )
Ethernet Interface for client	1x 10/100/1000BT Ethernet ports, Ethernet RJ-45 connection, Connect to computer or other Ethernet device.
OUT Ports	One RF CATV output port for CATV of 104~1000MHz
COM Ports	One combined RF CATV and G. HN input port supporting P2P and P2MP connections
