4u Design Gpon Olt Support up to 32 Pon Ports
- Payment Type:
- L/C, T/T, Money Gram, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Shenzhen China |
---|---|
Payment Type: | L/C, T/T, Money Gram, Western Union |
Product Description
Product Description

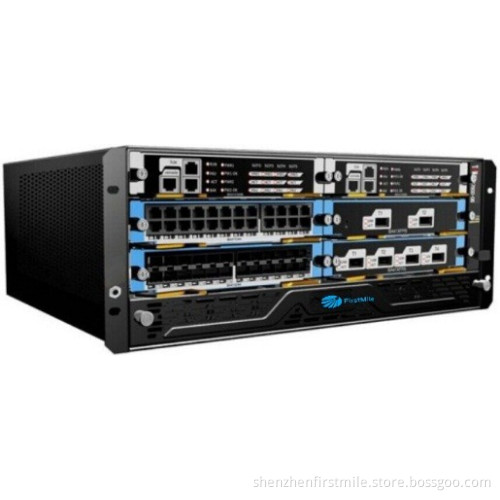

High-density GPON OLT OnAccess G9000 series
4U compact design, half-size serve slots
1+1 master control redundancy,1+1power supply redundancy
Hot plug fan chassis, intelligent speed and temperature control
6slots,2 main control cards,4 line cards
Maximum support 32*GPON
1.6Tbps widely backplane capacity and smooth upgrade to 40G/100G
IPv4/IPv6 and MPLS hardware line speed forwarding
The whole power consumption less than 350W
4U compact design, half-size serve slots
1+1 master control redundancy,1+1power supply redundancy
Hot plug fan chassis, intelligent speed and temperature control
6slots,2 main control cards,4 line cards
Maximum support 32*GPON
1.6Tbps widely backplane capacity and smooth upgrade to 40G/100G
IPv4/IPv6 and MPLS hardware line speed forwarding
The whole power consumption less than 350W
Item |
OnAccess G9000-04 | |
Backplane capacity | >1.6Tbps | |
Switching capacity | 960Gbps | |
Throughput(IPv4/IPv6) | 720Mpps | |
Number of slots | 6 | |
Number of service board slots | 4 | |
Service port | GPON | 32*GPON |
SWITCH | 96*GE,48*10GE | |
Redundancy design | 1+1 power redundancy 1+1 main control redundancy |
|
Power supply | AC:90~260V,50~60Hz; DC:-36V~-72V; |
|
Power consumption | ≤300W | |
Outline dimensions (mm) (W*D*H) | 442mm×176mm×420mm | |
Weight (in maximum configuration) | ≤15kg | |
Environmental parameter | Working temperature:0°C~40°C Storage temperature:-40°C~70°C Relative humidity:10%~90%,no condensing |
Product name |
Product description |
OnAccess G9000-04 | 6slots(4*service slots,2*main control slots,1*hot plug fan disk, no main control boards, no power supply) |
FM01MSUA0 | OnAccess G9000-04, main control boards, FMEngine™ I switch routing engine |
FM01PWR750A1 | OnAccess G9000,750W dual power supply module A1 |
FM01GP08MA | OnAccess G9000,GPON service card,8*GPON SFP,8*1000BaseX SFP |
FM01GS24SA | OnAccess G9000, switch routing service card,24*1000BaseX SFP interface |
FM01GT24SA | OnAccess G9000, switch routing service card,24*10/100/1000BaseT interface |
FM01SFP+08SA | OnAccess G9000, switch routing service card,8*10GE SFP+10GE interface |
SFP-GPON-LH20 | SFP GPON module (GEPON,1310nm R,1490nm T,20Km,SC) |
