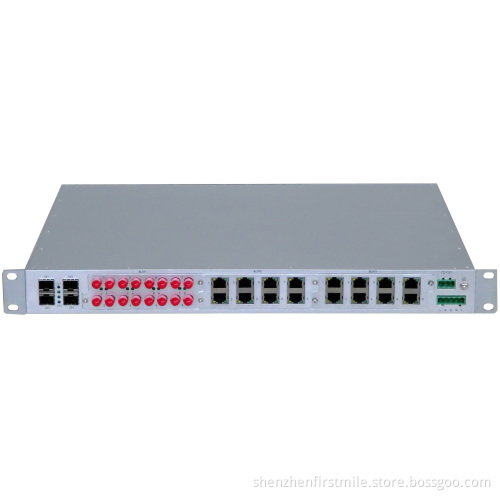

Modularized Advanced Managed Industrial Switch Pts 6228

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T

Product Description

Ports

Uplink: 4x1000BaseX SFP slots
Downlink:Up to 24 ports with 100M, 3 card slots
Card slots support 8F,8T,4T4F,2F6T,6F2T.

High Reliability

Support Proprietary Protocol "Fi Ring" (recovery time < 20ms),STP,and RSTP for network redundancy
Support LACP to expand the bandwidth of a switch port,balance the traffic among all the ports in link aggregation and enhance connection reliability.

Management & Maintainability

Support SNMP v1/v2c1v3 and RMON MIB Group 1,2,3,9
Support FirstMile FiVision NMS for industrial networks providing centralized management,status monitoring and trouble shooting,auto-discovery and auto-provision for incoming device

Comprehensive Security

Support 802.1X authentication
Support MAC address authentication

Versatile QoS Policies

0ffer powerful hardware ACL capability
Support different priority criteria: DSCP priority,802.1p priority,Strict Priority(SP) and Weight Round Robin(WRR)
Support diversified flow-based QoS:rate limit,traffic shape,traffic statistics,and priority marking

Specifications
Standards:
IEEE802.3
IEEE 802.3u
IEEE802.3z
IEEE 802.3ab
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for STP
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple STP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk
Protocols:
IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP,
SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH,
SNMP Inform, LLDP, SNTP Server/Client
MIB:
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control:
IEEE802.3x flow control,back pressure flow control
Switch Properties:
Priority Queues: 4
Max. Number of Available VLANs: 4094
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8K
Packet Buffer Size: 2 Mbit
Interface:
Fiber ports:1000BaseX(SFP slots),100BaseFX(ST connector)
RJ45 ports:10/100BaseTX auto negotiation
Console port:RS-232(RJ45 connector)
Alarm Contact:
1 relay outputs with current carrying capacity of 2A@250VAC/220VDC
Power Requirements:
Redundant dual inputs,A C-powered or DC-powered
Power : 110,220VDC(88-300V) or 110,220VAC(88-300V)
Power consumption: no more than 40w
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 5-contact terminal blocks
Physical Characteristics:
Housing: Metal,IP30 protection
Dimensions: 440 x 44.5 x 370mm
Weight: 5kg
Installation: 19-inch 1U rack installation
Environmental Limits:
Operating Temperature:-40 ~ +85°C (-40 ~ 187°F )
Storage Temperature: -40 ~ +85°C(-40 ~ 185°F )
Ambient relative Humidity: 5 ~ 95%(non-condensing)
Standards and Certifications:
Safety: UL 60950-1,CSA C22.2 No, 60950-1EN 60950-1
EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level4,EN 61000-4-3 (RS) Level3,
EN 61000-4-4 (EFT) Level4,EN 61 000-4-5 (Surge) Level4,
EN 61000-4-6 (CS) Level3,EN 61000-4-8 (PFMF) Level5,
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period: 5 years
