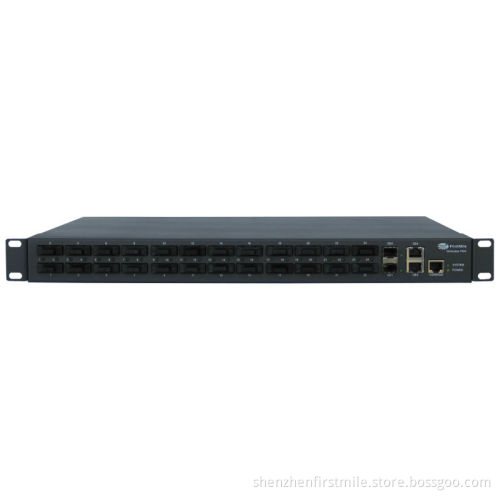

Fiber Optic Ethernet Switch Onaccess S7424

The OnAccess S7424 series smart fiber optic Ethernet switches are designed for cost-effective solutions of Ethernet fiber access for campus, enterprise and residential access scenarios. The switches utilize advanced microchips to ensure carrier-class stability and reliability, and can be managed either locally or remotely through Web browser.

The S77424 series switches include the following models. Users can configure their networks flexibly by selecting proper models.

Features

Versatile QoS Policies

The OnAccess S77424 series switches support bi-direction port rate-limiting. Port Mirroring is supported, and when this function is applied, data packets on a mirroring port are copied to its monitor port for network testing and troubleshooting. Customer can configure port mirroring to support ingress/egress/both data flow monitoring on one or more ports.

The OnAccess S7424 series switches support the queue scheduling algorithms of Strict priority(SP) and Weighted Round Robin(WRR).

The OnAccess S77424 series switches support different priority criteria: port-based priority, DSCP priority and 802.1p priority.

High Reliability

The OnAccess S77424 series switches support STP/RSTP. This feature can greatly improve network stability through the redundancy back-up and error tolerance capability.

The OnAccess S77424 series switches support link-aggregation. It is a simple and inexpensive way to expand the bandwidth of a switch port and balance the traffic among all the ports in a link aggregation. Moreover, it enhances the connection reliability.

Management & maintainability

The OnAccess S7424 series switches support web network management and firmware upgrade on-line.

Standards Support
