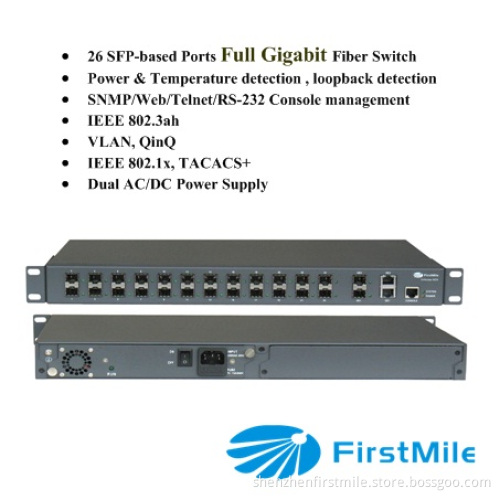

Fullgigabit Optic Ethernet Aggregation Switch Onaccess M8224

Features

4K IEEE 802.1Q based VLAN
Port-based VLAN
Protocol-based VLAN
MAC-based VLAN
VPN
GARP/GVRP
8K MAC addresses, auto-learning and refreshing automatically
Jumbo frame of up to 9216 bytes
4 outputting queues for each port
802.1p privilege, port privilege and DSCP privilege
SP, WRR queue Scheduling Algorithm
16 aggregation groups, with up to 8 members for each group, flexible load distribution control and fail-over function among them
802.3ad, Manual, static and dynamic port aggregation
802.3ad Spanning Tree Protocol (STP), Support 802.1w Rapid Spanning Tree Protocol (RSTP) and 802.1s Multiple Spanning Tree Protocol (MSTP)
Port-based egress, ingress and bi-direction rate control
Port Loopback detection function (LBD)
Multi-combination of MAC address, IP and Port binding
Static and dynamic MAC addressing configuration, and black hole MAC address filtering
IGMP v1/v2c/v3 Snooping, IGMP Proxy and immediate leaving
Multi VLAN registration (MVR)
Link Layer Discovery Protocol
Storm Control for any combination of multicast, broadcast and DLF traffic
DHCP Snooping, DHCP Option82
Dynamic ARP Inspection (DAI)
DHCP and ARP rate limit
Max MAC addresses limit on learned port
Port isolation
16 isolated VLANs
Access Control List (ACL), L2-L4 packet filtering function, traffic classification, traffic monitoring and statistics based on source MAC address, destination MAC address, source IP, destination IP, port, typology type, VLAN, CoS, DSCP, IP type, TCP/UDP port
Secure Shell (SSH) v2.0
Port-based 802.1x access control and MAC based address authentication
Flexible port mirroring, 4 mirroring groups of ingress/egress/both data flow monitoring on one or more ports
User access privilege levels
On-line software upgrade
Configuration file backup and restore
Dual power supply option provides power redundancy with status monitoring features
Monitoring on fan, temperature, CPU and memory status
Add your features here (we offer customization, please contact us for details. )
Network Management

SNMP v1/v2c/v3
Web page management
Command Line Interface (CLI)
Telnet and RS232 console management
Network management system(NMS)
Cluster management

Integrated OnAccess View Lite Network Management system (optional)

Single IP management
Cluster management
Plug and play, automatic network equipment discovery, network topology collection and management
Able to manage OnAccess7000 and 8000 series managed switch and "triple play" equipments, OnAccess700 series industrial switches and OnAccess specified series ONUs
Equipment automatic configuration
Software upgrade, configuration backup and restore, and remote reboot on managed equipment in batch
Alarm, log information collection, management and display, report error source and automatic treatment on network failures such as loop in network topology
Network Protocol and Standards

IEEE:
802.3, 802.3u, 802.3z, 802.3ab, 802.1d/w/s, 802.1p, 802.1q, 802.1v, 802.1ad, 802.3x, 802.1x

IEFT:
RFC1157 SNMP, RFC 1112/2236 IGMP, RFC854 Telnet, RFC 1123/1493/1643 MIB
Port Configuration

Two 100/1000M SFP Fiber or 10/100/1000BaseTX RJ45 copper combo ports
Twenty-four standard SFP based 100/1000Base-X ports
Power Supply Options

AC 90~264V/1.2A (max), 50/60Hz or
DC 18~36V/2A or
DC 36~72V/1.5A
Power Consumption: Less than 45W
Dual power modules optional
Physical and Environmental Parameters

Dimension: Standard 19-inch rack-mount wide, 1.0U high
Weight: 5Kg
Operating temperature: 0 ~ 50
Storage temperature: -25 ~ 85
Humidity: 5% ~ 95% RH non-condensing
