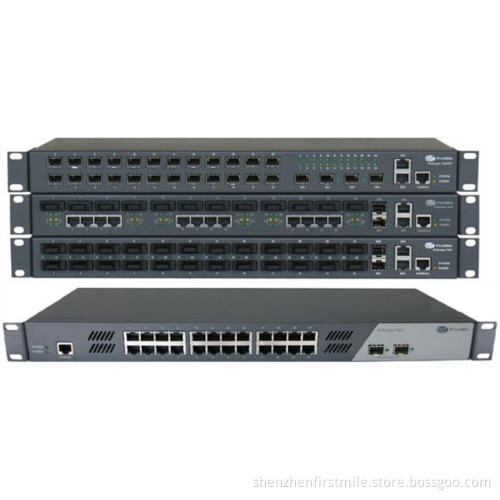

Gigabit Managed Optic Ethernet Access Switches Onaccess M7000

Versatile QoS Policies
The OnAccess M7000 series switches offer powerful hardware ACL capability. They can be classified based on the information about the L2-L4, such as the source MAC, destination MAC, IP protocol, source IP address, destination IP address, UDP/TCP port number and etc.
The OnAccess M7000 series switches support different priority criteria: DSCP priority, 802.1P priority; they also support the queue scheduling algorithms of Strict priority(SP) and Weighted Round Robin(WRR).
The OnAccess M7000 series switches support diversified flow-based QoS actions. Based on the ACL defined, the switches can perform the following QoS actions: rate limit, traffic shaping, traffic statistics, and priority marking.

Comprehensive Security
The OnAccess M7000 series switches support 802.1X authentication to identify users who attempt to access the network.
The OnAccess M7000 series switches support MAC address authentication. It controls accesses to a network through ports and MAC addresses. Furthermore, The OnAccess M7000 series switches can perform 802.1X authentication and MAC address-based authentication simultaneously.
MAC-IP-port binding allows a device to filter packets and thus enhancing security. With MAC-IP-port binding configured, a port checks whether the source MAC and IP addresses of an ingress packet is identical to the configured MAC-to-IP binding on the port. If so, it forwards the packet, otherwise, it discards the packet.
The OnAccess M7000 series switches support ARP detection to guard ARP spoofing. According to the ARP detection function, the switches check the validity of the ARP packets using the DHCP-Snooping table or the manually configured IP binding table. You can also set trusted ports. ARP packets coming from the trusted ports will not be checked, while those from other ports will be checked through the DHCP Snooping table or the manually configured IP binding table.

High Reliability
The OnAccess M7000 series switches support STP/RSTP/MSTP. These STP/RSTP features also support BPDU guard, Root guard and Edge-port. This feature can greatly improve network stability through the redundancy back-up and error tolerance capability.
The OnAccess M7000 series switches support LACP. It is a simple and inexpensive way to expand the bandwidth of a switch port and balance the traffic among all the ports in a link aggregation. Moreover, it enhances the connection reliability.

Management & maintainability
The OnAccess M7000 series switches support SNMP v1/v2c/v3 and RMON v1/2/3/9 groups of MIBs.
TheOnAccessM7000 series switches support OnAccess View EMS. The network administrator can manage several member switches through one command switch, and only the command switch needs a public network IP address. It can save public IP addresses and manage the network more efficiently.
