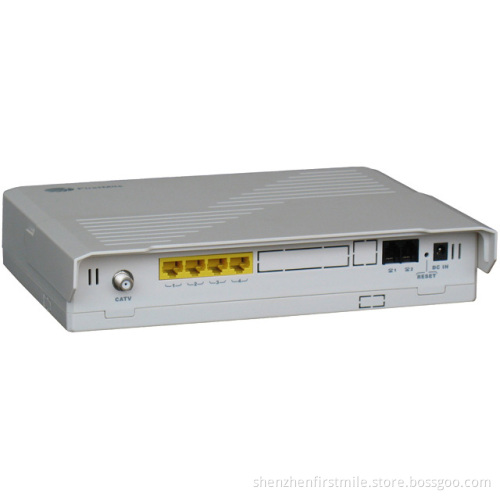

P2p ONU 100/1000Mbps Dual Rate FTTH Gateway CPE

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

The OnAccess 45x series advanced FTTH optical gateway with managed Layer 2 Ethernet services are developed for FTTH network based active Ethernet. They provide the demarcation point of the network and offer all the functions of Layer 2 residential gateway, including voice, CATV and wireless connectivity. They offer 100/1000Mbps dual-rate WAN port and 4 data LAN ports of 10/100/1000 Mbps each. Subscribers in the same area can be offered dedicated and differential bandwidth based on their individual requirements

Dual rate 100/1000base-X Ethernet WAN interface
Four 10/100/1000Base-TX LAN ports for user interfaces
Two FXS ports to connect tanalog phones
RF CATV overlay, and support remote enabling/disabling and monitoring
Built-in WiFi (IEEE 802.11b/g/n)
Low power consumption solution
Flexible management and provisioning through Web browser, CLI, Telnet, and SNMP
Support for centralized management through OnAccess View EMS
Fiber Termination Unit and Backup battery available

WAN port	SFP Based
	100/1000Base-BX-U(BIDI): TX 1310nm, RX1490 or 1550nm
	100/1000Base-LX(dual fiber): TX 1310nm, RX1310nm
	SC/PC or LC/PC or SC/APC (for Triple-Play models, single fiber version)
	Full duplex transmission
	SFP internal ID and status monitoring capability
	Support longer range based on clients' requirements
LAN ports	10/100/1000Base-TX
	RJ45 Connectors, Auto-negotiating speed, duplex, Auto-MDI/MDIX
	Ports managed independently
	4 priority QoS queues per port
	Configurable 802.1p and DSCP, priority-to-queue mapping
	VLAN tagging, VLAN trunking supported
	Up to 16 concurrent VLANS (15 per port)
	IGMP snooping
Wireless	IEEE 802.11b/g/n
	Provides 300Mbps transmission rate
	Disabled / enabled / WPS active
	2.400 ~ 2.483 GHz frequency band
	Internal antennas
	Supports 64/128-bit WEP, WPA, WPA2, WPA1WPA2, WPA-PSK, WPA2PSK, WPAPSKWPA2PSK and 802.1X encryption
	WPS registration button
	Supports Hidden SSID and Multiple SSID
	Supports TxPower adjustment
	Supports Wireless Client Access Control
	Supports WDS Lazy Mode, Bridge Mode and Repeater Mode
	Supports WMM (Wi-Fi Multimedia)
	Supports AP Discovery
VoIP ports	2 RJ11 FXS POTS ports, 2 separate telephone lines
	SIP-based Voice-over-IP
	G.711 A-law, µ-law codec, G.726, G.723,G.729 codec, GSM codec
	DTMF signaling in-band / RFC 2833 /SIP info
	Line Echo Cancellation
	Adaptive jitter buffer
	Packet Loss Concealment
	Caller ID support (DTMF / FSK)
	Class 5 services: call forward, call hold /release, call waiting, call forwarding and 3-way conference call
RF CATV	Optical parameter	SC/APC connector
		Receive wavelength: 1260…1600nm
		Optical input: -10dBm…+2dBm
		Recommended input: -8dBm…0dBm
	Electrical parameter	Coaxial connector F-female (IEC 16924)
		RF impedance coaxial connector 75 Ω
		RF frequency range 40 MHz– 870 MHz
		Flatness ± 1 dB
		Return loss output >=14 dB
		C/N 47 dB @ -10 dBm input, OMI 5%/ch
		CSO -65 dBc (-5 dBm optical input)
		CTB -65 dBc typical (-5dBm optical input)
		RF output level 80 – 90 dBµV typical (-10 dBm to +2 dBm, OMI 5%/ch)
	Control and monitoring	Remote enabling/disabling Remote monitoring if input signal is valid Local monitoring if input signal is valid (LED indicator) Orange Color: -10dBm…-8dBm, 0dBm…+2dBm Red Color: < -10dBm, > +2dBm
Management	OnAccess View EMS
	Web-based user interface (HTTP)
	Firmware upgrade via TFTP
	Three levels of user authorization (superuser, administrator and guest)
	Support SNMP v1/v2c/v3
	Telnet CLI
Emission and Safety	CE approved
	Safety: IEC EN 60950
	Laser Safety: IEC EN 60825-1, Class 1 laser product
	Emission: EN 55022, ClassB
	Immunity: EN 55024
Physical Parameter	Dimensions(HxWxD): 213mm X 268mmX56mm W/ cover; 183mm X 268mmX56mm W/O cover
	Weight: 1.3kg
	Power Supply: 12VDC
	Power dissipation: <6W
	Operating Temp. 0ºC~+60ºC Storage Temp. -10ºC~+70ºC
	Relative humidity 5%~95% (non-condensing)

	Configuration Overview
Model	WAN, Fiber, 100/1000M	LAN, 10/100/1000Base-T	WiFi	CATV	VoIP
OnAccess 451	S: Single, SC/PC or LC/PC	4	Yes	No	No
	D: Dual, LC/PC
OnAccess 452	S: Single, SC/APC	4	Yes	Yes	Yes
	D: Dual, SC/APC+ SC/PC or LC/PC
OnAccess 454	S: Single, SC/APC	4	Yes	Yes	Yes
	D: Dual, SC/APC+ SC/PC or LC/PC
OnAccess 455	S: Single, SC/PC or LC/PC	4	Yes	No	No
	D: Dual, LC/PC
