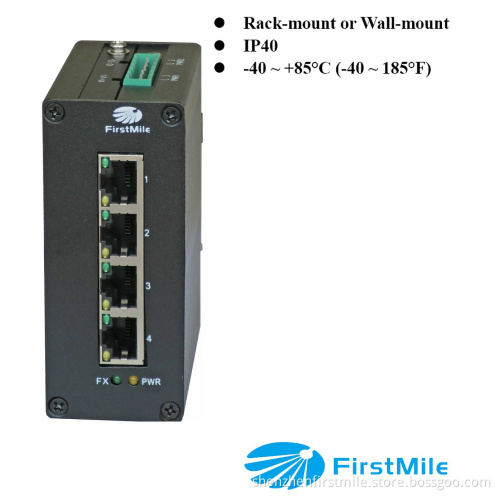

Unmanaged Industrial Ethernet Switch with 5 Ports 10/100basefx/Tx

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T

Product Description

Standards:
IEEE 802.3
IEEE 802.3u
Interfaces:
IDS 405: 1 x 10/100BaseFX port + 4 x 10/100BaseTX ports
RJ-45: 10/100BaseTX
Console: RS-232 (RJ-45 connector)
Power Supply:
Input Voltage: 24VDC (12 ~ 36VDC),dual power supplies
Input Current:
IDS 405: <0.09A@24VDC
Overcurrent protection: provided
Short circuit protection: provided
Connector: 6-pin connector
Mechanical:
Case: metal with IP40 protection
Dimensions: 40 x 77 x 97 mm
Weight: 750g
Installation: rack mount or wall mount
Environment:
Operating temperature:
Standard: 0 ~ +60°C (32 ~ 140°F )
Extended: -40 ~ +75°C (-40 ~ 167°F )
Storage: -40 ~ +85°C (-40 ~ 185°F)
Humidity:5 ~ 95% (non-condensing)
Standards and Certifications:
Safety: UL 60950-1
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Level 3
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty: 5 years
