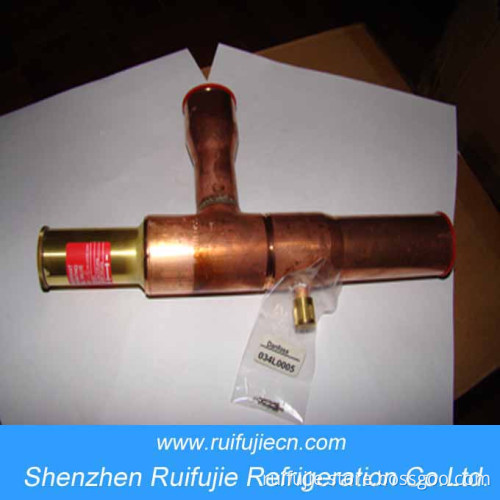

Danfoss Evaporating Pressure Regulator (KVP Series)

The KVP is mounted in the suction line after the evaporator. It is used to:
1. Maintain a constant evaporating pressure and thereby a constant surface temperature on
The evaporator. The regulation is modulating. By throttling in the suction line, the amount of refrigerant gas is matched to the evaporator load.

2. Protect against too low an evaporating pressure (e. G. As protection against freezing in a water chiller). The regulator closes when the pressure in the evaporator falls below
The set value.

3. The KVP are also used to differentiate the evaporating pressures in two or more evaporators in systems with one compressor.

Features
Accurate, adjustable pressure regulation
Wide capacity and operating range
Pulsation damping design
Stainless steel bellows
Compact angle design for easy installation in any position
"Hermetic" brazed construction
1/4 in. Schrader valve for pressure testing
Available with flare and ODF solder connections
For use with CFC, HCFC and HFC
Refrigerants
