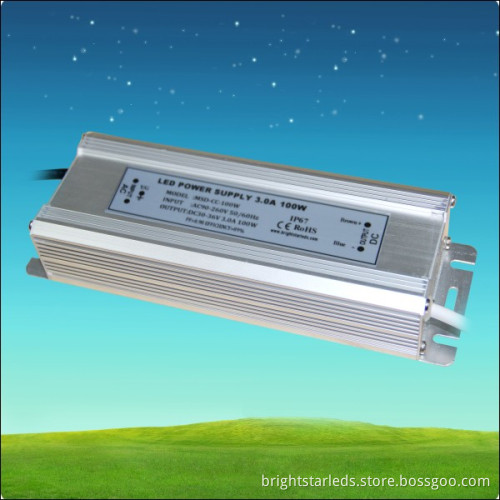

IP67 100W 30-36V 3A Constant Current LED Driver

IP67 100W 30-36V 3A Constant Current LED Driver
Parameters :

Model:                            MSD-CC-100W
Input voltage(V):         85-265V /50/60Hz
Output voltage(V):      20-60V (For Choice)
Output Current(A):     1.5-5A  (For Choice)
Efficiency:                    >90%
PFC:                              >0.98
Isolation:                      YES
Certification:               CE/RoHS
Waterproof:                 IP67
Customized:               YES
Dimension:                   L190*W70*H40mm
Operating Ambient: -40 -------+70Celsius Degree
Weight:                        960g

Features:
Adopting PWM switching technology design,our LED switching power supply is featured with stability and high efficiency
More than 24hours aging time with 100% load
Efficiency>85%,temperature rise≤25°C
Short circuit& Over voltage and Over load protection
Have both constant current and constant voltage series suitable for input voltage of 90~130VAC,170~250V/AC,Compliant with CE(LVD+EMC)/ROHS/IP67 certifications standard
Can be customized with VDE/UL/SAA plugs at AC side( 1USD/pc)


E-catalogue:


Testing:
Certificate:
CE(EMC):LCS1111233113E
CE(LVD):LCS1111233114S
RoHS:     LCS1111233115R

Safety:
Safety Standards:EN 55015: 2006+A1: 2007+A2: 2009EN 61547: 2009
EN 61000-3-2: 2006+A1: 2009+A2: 2009EN 61000-3-3: 2008
EN 61347-2-13:2006; EN-61347-1:2008
Withstand Voltage: I/P-O/P: 3750VAC


Packing details;
