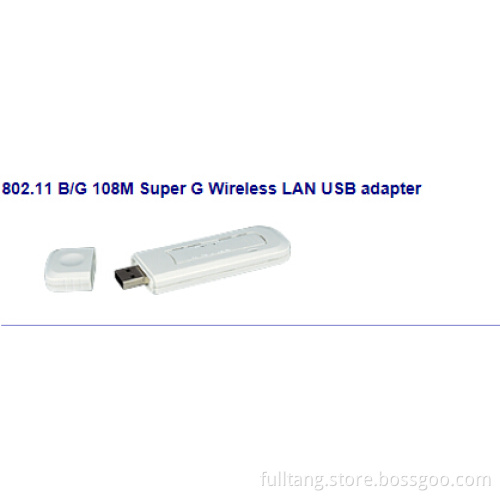

802.11 B/G 108m Super G Wireless LAN USB Adapter

Features:
Complies with IEEE802.11g, IEEE802.11b
Adopts Sedna Super 11G™ WLAN transmission technology, transmit speed auto-negotiation, up to 108M
A-type Female USB connector
Provides 64/128-bit WEP Encryption,
Supports WPA, IEEE802.1X, TKIP, AES
Supports Windows 2000, XP
Provides simple configuration and supervisor program
Supports Ad-Hoc/Infrastructure modes
Supports Wireless Roaming, can move among different AP and no break




Specifications:

Protocols and Standards
IEEE 802.11g; IEEE 802.11b; USB2.0; CSMA/CA with ACK
Interface
A-type Male USB 2.0 Connector
Frequency
2.4~2.4835GHz
Radio Data Rate
108/54/48/36/24/12/9/6/11/5.5/2/1 Mbps (Auto Rate Sensing)
Channel
13
Spread Spectrum
DSSS
Modulation
1M DBPSK; 2M DQPSK; 5.5M, 11M CCK; 6M, 9M, 12M, 18M, 24M, 36M, 48M, 54M, 108M OFDM;
Sensitivity@PER
108M: -68dBm/10%PER (TYPICAL)
54M: -68dBm/8%PER (TYPICAL)
11M: -84dBm/8%PER
Transmission Distance
Indoor up to 100m, outdoor up to 300m (It is limited in an environment).
Transmit Power
20dBm(Max)
Data Security
WPA; 64/128/152 BIT WEP; TKIP/AES
LED Indicator
Status
Power Consumption
Typically 480mA in full Transmit (TX), 420mA in full Receive (RX)
Dimensions
100 × 30 × 11 mm (3.9 × 1.2 × . 4 in. )
Environment
Operating Temperature: 0º C~40º C (32º F~104º F)
Storage Temperature: -40~70º C (-40º F~158º F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Operating System
Windows 2000/XP
