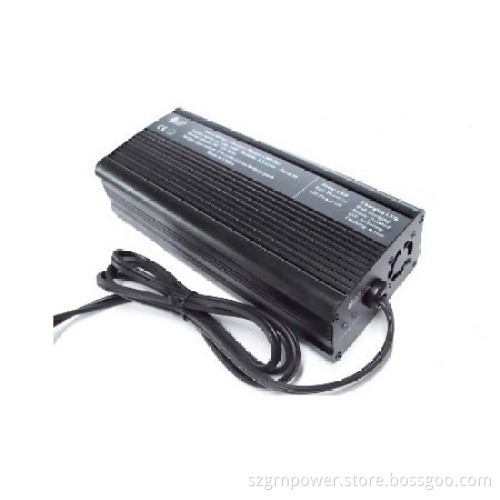

200W 12V 24V 36V 48V Lead-Acid Battery Charger
- Payment Type:
- T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T |
Product Description
Product Description
1. The charger integrates power factor correction (PFC), it can avoid the impact of high current and can't produce pollution on the grid
2. The input AC voltage is 90V~264V 50~60Hz for A200-XX, and is 90V~132V or 200V~260V 50~60Hz for A200CM-XX
3. Efficiency > 87%, Power Factor > 0.97 [for A200] or >0.7[for A200CM]
4. With MCU controller, CC+CV(H)+CV(L) 3-stages charge method
5. Designed for 12V~48V Pb-Acid battery
Protection
1. The charger's internal relay makes the output voltage is less than 5.5V with no-load, when the output is connected to a battery, the output voltage of charger is normal
2. Short circuit protection: When the output of charger is shorted, the charger will close output automatically without any damage
3. Reverse polarity protection: When the output is connected to a battery reversely, the charger will close output automatically without any damage
4. Overheating protection: The internal temperature exceeds 80° C, the charger will close output automatically
2. The input AC voltage is 90V~264V 50~60Hz for A200-XX, and is 90V~132V or 200V~260V 50~60Hz for A200CM-XX
3. Efficiency > 87%, Power Factor > 0.97 [for A200] or >0.7[for A200CM]
4. With MCU controller, CC+CV(H)+CV(L) 3-stages charge method
5. Designed for 12V~48V Pb-Acid battery
Protection
1. The charger's internal relay makes the output voltage is less than 5.5V with no-load, when the output is connected to a battery, the output voltage of charger is normal
2. Short circuit protection: When the output of charger is shorted, the charger will close output automatically without any damage
3. Reverse polarity protection: When the output is connected to a battery reversely, the charger will close output automatically without any damage
4. Overheating protection: The internal temperature exceeds 80° C, the charger will close output automatically
| Technical Specifications | |||
| AC Input | |||
| Nominal Input Voltage | 120 VAC / 230 VAC RMS | ||
| Input Frequency | 45 - 65 Hz | ||
| Input Current | 2A rms @ 120 VAC or 1 A rms @ 230 VAC | ||
| Power Factor | > 0.97 [for A200] or > 0.7[for A200CM] | ||
| Charger type DC Output |
Pb-Acid battery charger | ||
| A200CM-12 | A200CM-24 | A200CM-48 | |
| Output Voltage (no battery) | < 4V | < 4V | < 5V |
| Floating Charging Voltage | 13.8V± 1% | 27.6V± 1% | 55V± 1% |
| Bulk Charging Voltage Limit | 14.6V± 1% | 29.2V± 1% | 59V± 1% |
| Charging Current | 12A± 5% | 6A± 5% | 3.5A± 5% |
| LED Indicator |
Power LED Red: power on | ||
| Charging LED Off: no battery | |||
| Red: charging | |||
| Green: finished | |||
| Red flashing: errors | |||
| Efficiency | > 87% | ||
| Environment | |||
| Operating Temperature | -10~40° C | ||
| Operating Humidity | < 90% | ||
| Storage Temperature | -40~70° C | ||
| Storage Humidity | < 95% (non-condensing) | ||
| Cooling | Fan cooling | ||
| Safety | |||
| Max Temperature rising | < 20° C (on casing) | ||
| Safety Standard | EN60335/EN61000 | ||
| Hi-Pot Insulation | i/p to o/p: 1500AC (1 min. ) (For final unit, cut-off current =10mA) |
||
| Mechanical | |||
| Weight | 800g | ||
| Dimensions(L*W*H) | 213*94*54mm | ||
| Input/Output Cord | Defined by user | ||
