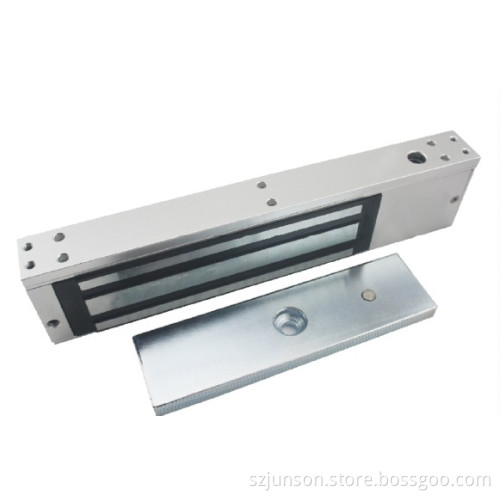

800lbs CE Approved Magnetic Lock with LED and Timer

800lbs CE Approved Magnetic Lock with LED and Timer

Lock Size: 250Lx59Wx29H(mm)
Armature plate: 185Lx49Wx11H(mm)
Holding Force: 350kg(800Lbs)
Voltage: 12/24VDC
Current Draw: 12V/480mA 24V/240mA
Available Bracket: JS-35U, JS-35L

Signal Output: Dry Contact, Max Rating of Contact Current 3A (Just for JS-350S/JS-350TS)
LED indicates the door is unlock, Green indicates the door is lock (Just for JS-350S/JS-350TS)
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20
Operating Temp: 10~+55(14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2.5kg
Standard Packing: 8PCS

Carton Size: 53Lx30Wx14H(cm)

Time delay: 0~9 seconds (just for JS-350TS)

Lock Collinear Load Test 350kg, 800pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
High Strength Material(kasolite steel), Anodized Aluminum Housing
Design with no Mechanical Bolt
Increase the holding Force, Dual Insulative Hosing
