Mini Electric Cabinet Lock (JS-60)

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Western Union

Product Description

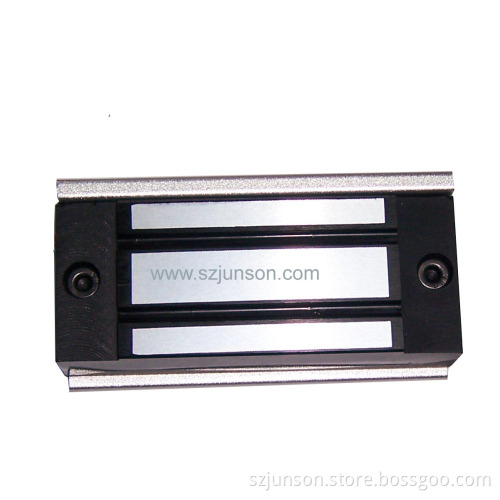

Mini Electric Cabinet Lock (JS-60)

Single Door Electric Lock (100Lbs) (JS-60)
Lock Size: 80Lx40Wx25H(mm)
Armature plate: 70Lx33Wx10H(mm)
Holding Force: 60kg(100Lbs)
Voltage: 12/24VDC
Current Draw: 12V/100mA; 24V/200mA
Suitable for: File cabinet, display cabinet
Surface Temp: ≤ +20
Operating Temp: 10~+55(14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 0.5kg

Standard Packing: 60PCS
Collinear Load Test 60kg, 100pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
High Strength Material(kasolite steel), Anodized Aluminum Housing
Design with no Mechanical Bolt
Increase the holding Force, Dual Insulative Hosing
We offer many door lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Lock.
