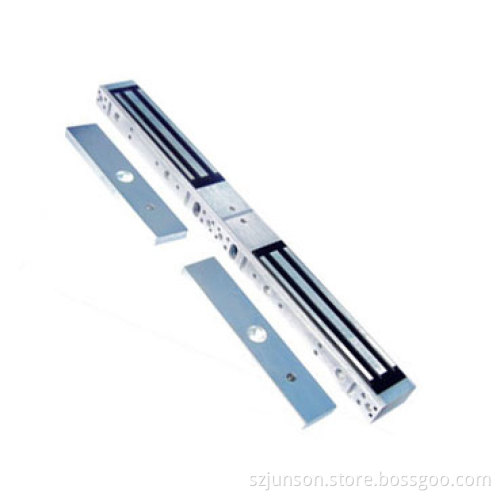

1200lbs Double Door Magnetic Lock with LED

Double Door Magnetic Lock with LED

Lock Size: 500Lx49Wx25H(mm)
Armature plate: 180Lx38Wx12.5H(mm)
Holding Force: 280kgx2(600Lbsx2)
Voltage: 12/24VDC
Current Draw: 12V/500mA 24V/250mA
Available Bracket: JS-28U, JS-28L

Signal Output: Dry Contact, Max Rating of Contact Current 3A
LED indicates the door is unlock, Green indicates the door is lock
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20
Operating Temp: 10~+55(14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 4kg
Standard Packing: 6PCS

Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
LED Indicates the Door Status
Door Status sensor(NO/NC/COM)
High Strength Material(kasolite steel), Anodized Aluminum Housing
Design with no Mechanical Bolt
Increase the holding Force, Dual Insulative Hosing

We offer many door lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Lock.
