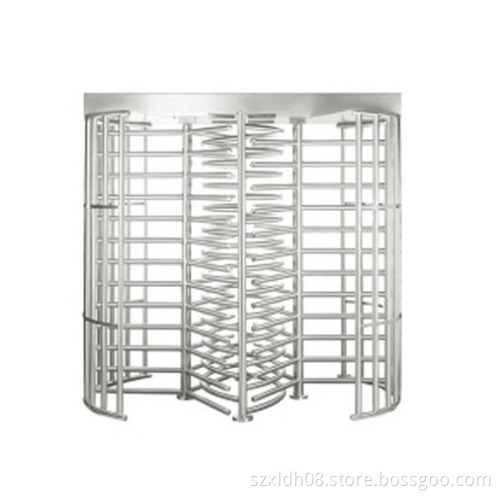

Double Channel Access Control System Full Height Turnstile Gate (XLD-Z02)

Double Channel Access control system full height turnstile gate

Full height turnstile is an integration of mechanism, electric, mic-controller and various kinds of reading and writing technologies. It is used to control and manage passages smart by working with different kinds of readers and writers, reliable protection equipment, real-time alarm and direction guide.

And our full height turnstile has standard electrical interface which can be connected with barcode cards, IC cards, ID cards, magnetic cards conveniently. Also our products can satisfy the requirements of fire-control.

Features:
1. Available in single walkway or bi-directional passage
2. A valid lock action can allow one passage at one time
3. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be set up with the built-in small keyboard or software.
4. Emergency configuration: The central column will be set free when power off to provide a clear walkway for escape in the event of an emergenc.
5. Anti backup function to prevent reverse rotation once the arm has move 45 degree form home.
6. Control panel with count and LED digital function.
7. Optional traffic-light: A Red Cross symbol will illuminate to indicate 8. The unit is not available for pass, and a green arrow indicate the direction of allowable pass.

Technical Parameters
1. Box materials: 304 stainless steel
2. Box dimensions: Single channel 1500*1500*2300mm

Double channel 2400*1500*2300mm
3. Brake rod length: 600mm
4. Weight: 350kg-700kg
5. Gate pole shift: One-way or two way
6. Power supply voltage: AC220 ± 10%V, 50Hz
7. Interface: One standard port-RS485
8. Working Environment: Indoor/Outdoor
9. Transit speed: 30-40 persons per minute
10. Working environment: Indoor or outdoor
11. Temperature: -10 Celsius to 50 Celsius
12. Relative humidity: ≤ 90% no condensation.
