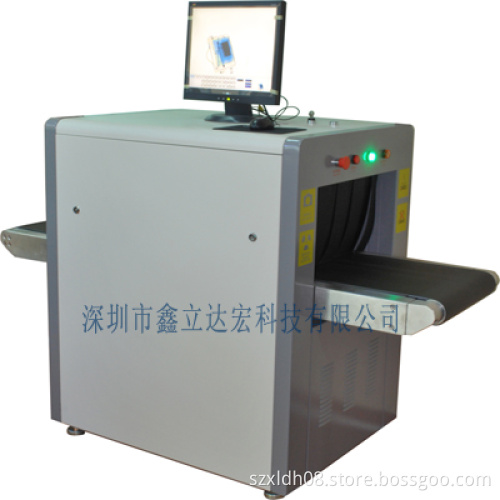

Metal Detector& X-ray Baggage Scanner (XLD-T5030A)

This kind of machine is mainly used in airport, bus/railway and train station.
It is easy to install.

PURPOSE: Specially designed for tour spot, gymnasium, conference center
Exhibition center, baggage deposit, shopping mall, hotel, etc.

SPECIFICATIONS:

* Tunnel Size 505(W)*305(H)mm
* Conveyor Max Load 150 Kg
* Conveyor Speed 0.16m/s
* Resolution <0.1mm Metal wire
* Penetration 5mm Steel
* X-ray Leakage <0.1mR/h(at a distance of 5cm From external housing)
* Film Safety Guarantee ISO1600 Film

X-ray Generator:

* Anode Voltage70kV
* Cooling/Duty Cycle Oil Cooling/100%

Images System:

* X-ray Sensor L-Shaped Photodiode Array
* Monitor High Resolution Color, LCD, Accord with MPR II&TCO03 Standard
* Images Processing Color/black & while image oppositely display Brim strengthening Image strengthening/Pullback/conservation/searches Strong/weak penetration Alarm function

Zones & Zoom:
* Image Grey Level 4096
* Image Max Resolution1024*768
* Image processing24bit for processing real time
* Zones&Zoom1-9Image regions; 248 Times Enlarge; Whole screen continuous observation

Installation Data:
* Operating Temperature/Humidity0 ~ 45/20%~95%
* Storage Temperature/Humidity-70 ~ 70
* Operating Power/Power Consumption220VAC(± 10%), 50± 3Hz/0.5kVA

Other Function:
* Date & Time Show Operation Show Luggage Calculation Show Operator ID Code Emetgency Stop Indication Image minimize Show Operation Self Diagnose Website Connection System Operation & X-ray Spray Time Calculation.
The specification is under standard test condition. The sensitivity depends on the working condition. We have no responsibility that metal chips come out after detecting under non-standard condition.
