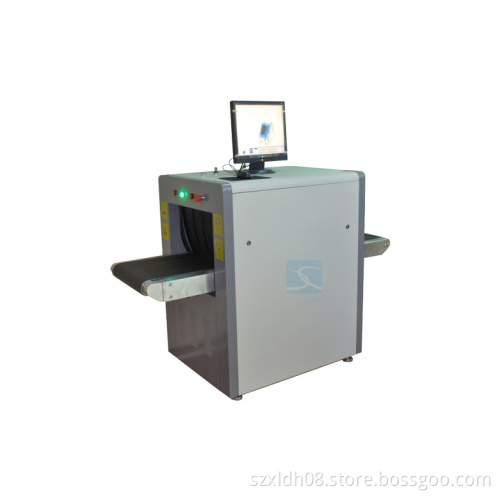

5030c High Resolution X-ray Machine for Airport and Train Station Security

5030C High Resolution X-ray Machine, X ray Baggage Scanner, Luggage Scanner


Quick Detail:

1. Tunnel size: 500(w)× 300(h)mm
2. Alarm by sounds & light
3. Network interface could be connect local area network and support multi-terminal check baggage at same times
4. Safety ray transmit ray under automatic control, avoids the miss
5. Image monitoring for user-friendly the monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
6. Simple operation by mouse without keyboard and work table, control by mouse, save space.
7. Turn off by a key control turn off the machine only need one step revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
8. Eagle-eye could be expediently observing enlargement area.
9. Estimate malfunction by self automatic estimate malfunction and prompt message, helpful for the maintenance.


Specifications:

Conveyor speed:
0.22m/s
Conveyor max load:
20kg
Single inspection dosage:
<1.5µ Gy
Wire resolution:
0.1mm metal line
Steel penetration:
32mm armor plate
Film safety:
For iso 1600
Maximum leakage radiation:
<0.3 µ Gy/h
X-ray generator:
Orientation vertically upward
Tube current:
0.4~1.2ma(adjustable)
Anode voltage:
100~160kv(adjustable)
Angle:
80°
Generator cooling/working periods:
Sealed oil bath with forced air/100%


Description:

1. Image performance system
2. X-ray sensor l type photo-diode array detector, 12bit
3. Monitor high resolution 17inch color lcd display color quality 24 bit real colors
4. Edge enhancement object contour edge is more distinct
5. Super image enhancement image detail is more distinct
6. High penetrate strength display increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly
7. Low penetrate strength display increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly
8. Magnifier function of partial enlargement
9. Brightening/dimming increase brightness of image/decrease brichtness of image
10. Image recurrence display previous twenty images and process any one of them
11. Image restoration restore image to initial status at the time of stopping conveyor
12. Image storing real time store any image and process it in operation status
13. Multi-energy color display organic material for orange, display inorganic material for blue, and display mixture for green
14. High energy/low enercy switch to display two energy type, high energy stands for metal etc., low energe stands for nonmetallic
15. Auxiliay function for drugs & explosives help to detect such dangerous material as drugs & explosives etc.
16. Audible & visible alarm give sound and visible signal when conforming to condition


Main Advantages:

1. Storage temperature -20º C to 60º C
2. Operating temperature 0º C to 45º C
3. Relative humidity 20 to 95% non-condensing
4. System power 220 vac (± 10%) 50± 3hz
5. Power wastage 1.0 kw (max)
6. Noise <65db


Application places:

Factory, airport security, stadium, entertainment, etc
