Zk8500 USB Fingerprint Reader and Card Issuer

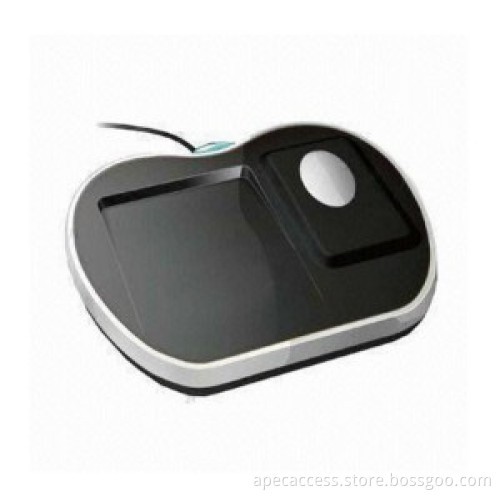

USB Fingerprint Reader (ZK8500)

Zk8500 Fingerprint and Card Issuer

Additional Info.
Trademark: ZK or OEM print LOGO as you required
Packing: Color Box
Standard: CE, FCC
Origin: Shenzhen China
Production Capacity: 50, 000 PCS/Month

Product Description

Introduction:
ZK8500 is an fingerprint and card issuer product. It is able to collect fingerprint image and convey the digital fingerprint template to PC, supporting ZK Finger SDK development kit. The collected fingerprint image is 500 dpi. The surface of ZK8500 fingerprint sensor adopts hard optical material and patented protective membrane, ZK8500 is an ideal fingerprint enrollment device with good verification performance. Built-in Mifare card read-write module enables fingerprint template and digital data deriving from PC be written into Mifare card, which eliminates the trouble of issuing card from single time attendance device or access control device. ZK8500 fingerprint and card issuer will lead the application revolution of consumption product and will be used in many traditional membership consumption places such as large shopping stores and department store, exclusive club, and canteens of school or government. This product will be also widely used social insurance, public security, time attendance, fingerprint encryption, embedded system and other many fields of application.
Features:
· Integration of fingerprint collection and Mifare card store function
· Excellent image quality: 500 dpi
· Support fingerprint 360 degree rotation
· Good performance for dry or rough finger
· Support ZK Finger SDK Kit
· Driver is available in Windows 2000/2003/XP/Vista
· 8 bit gray scale
· Compatible with USB1.0 / 1.1/ 2.0
Specifications:
· Built-in Mifare one(13.56 MHz) read-write module
· Fingerprint sensor: ZK Optical Sensor with strengthen film
· Resolution: 500DPI
· Image size: 15.4mm*18.0mm
· Interface: USB1.1, compatible with USB1.0, 1.1, 2.0 full speed
· Registration speed: <0.5 sec
· Operating Temperature: 0° - 40° C
· Operating Humidity: 20%-80%
· Operating System: Windows2000, 2003, XP, Vista
· USB cable length: 150 CM
· Dimension (L*W*H): 124.5mm*102mm*34mm
· Power Supply: 5.0V +/- 0.25V ( USB interface power)
· Current: Capture fingerprint: Max 100 mA
· Idle mode: Max 30 mA
· Suspend mode: <0.5 mA
