P20 Hot Sale IP65 LED Display LED Screen Digital Billboard

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union

Product Description

Main features of P20 outdoor LED diaplsy
1. Competitive prices, reliable quality
2. High brightness & High resolution;
3. High contrast ratio which ensures vivid images;
4. Low power consumption, environmentally friendly;
5. Customizable for various sizes;
6. Compatible software: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA;
7. Excellent after-sales service, warranty of three years;
8. CE, RoHS, ISO certificate

Parameter

Parameter	Unit	Value
Pitch	mm	20
Brightness	nits	6,000
Color temperature	deg. K	6,500
Viewing angle - Horizontal (50% brightness)	deg.	130 (+65/-65)
Viewing angle - Vertical (50% brightness)	deg.	60(+30/-30)
Panel weight	kg	60.5
Panel width	mm	1,280
Panel height	mm	960
Panel depth	mm	170
Panel area	sq. m.	1.229
Panel material		Epoxy paint coated Cold rolled steel
Ingress protection (front/rear)	IP	IP65/IP43
Operating temperature range	deg. C	-30 to +60
Humidity operating	RH	10% ~ 90%
Pixel type and configuration	R/G/B	2,1,1
Resolution per panel		64x48
Dot per panel		3,072
Dot per sq. meter		2,500
LED per sq. meter		10,000
Recommended minimum viewing distance	m	20
Recommended best viewing distance	m	25~67
Colors		1,073.7 million
Grey scale (linear)	Levels	1,024 levels per color
Brightness control	Levels	100
Contrast ratio		1,000:1
Processing depth	bit	16
Video frame rate	Hertz	60
Display refresh rate	Hertz	180~3,000
Input voltage (nominal)	VAC	110 to 240
Input power frequency	Hertz	50 to 60
Input power (max)	Watts / sq. m.	488
Input power (typical)	Watts / sq. m.	196
Lifetime (50% brightness)	Hours	≥100,000
Red wavelength (dominant)	nm	620~625
Green wavelength (dominant)	nm	520~525
Blue wavelength (dominant)	nm	470~475
Multimedia data format		DVI,MPG,AVI,WMV,RM etc.
Data interconnection		UTP Cat 5/Optical Fiber
Mounting system		Fixed with 4pcs M10 bolts

Packaging & Delivery
Packaging Detail: Standard export carton case/flight case/carton box
Delivery Detail: 20-30 days

About LEDSolution
LEDSOLUTION is one of the most competitive Global suppliers of Complete LED Video Displays, LED Lightings and LED Components Solutions. We are specialized in high quality LED components, LED displays and LED lighting products including research, development, production and marketing, serving various turnkey solutions for government projects, corporate image projects, commercial projects and release of network information, etc.

Applications:

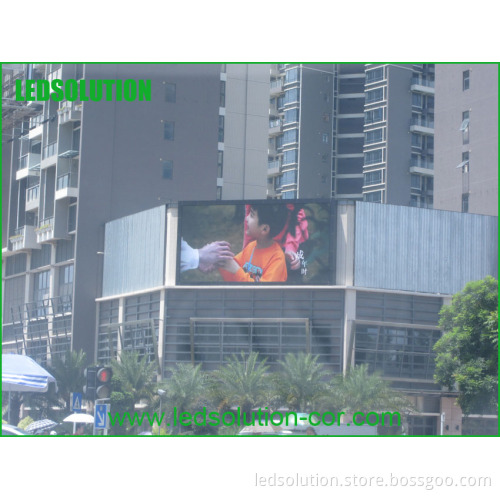

LED display is applied for advertising, city beautifying, information publicity, great concerns and relative activities.
1. Outdoor advertising, digital billboards, advertising in big companies
2. Stadium, Sports halls, fields, playgrounds
3. Airports, bus stations and railway passenger terminals
4. Facades of shopping malls, department stores, banks and car dealerships
5. Architecture and social projects, information systems in cities.
6. Show-business, concerts, festivals, motor shows and other public events.
