V4.0 Bluetooth Audio Receiver for Mobile Phone with Speaker and Mic Function (BD-BT-102)

V4.0 bluetooth audio receiver for mobile phone with speaker and mic function

Bluetooth 4.0
Support A2DP V1.2
Support CLASS 2 and CLASS 1

5V DC power supply
Transmission distance is not less than 10 M
Size: Diameter 52 X Height 15 mm
1 indicator light, no connection, blue light and red light flash alternately; Blue light flash when connected

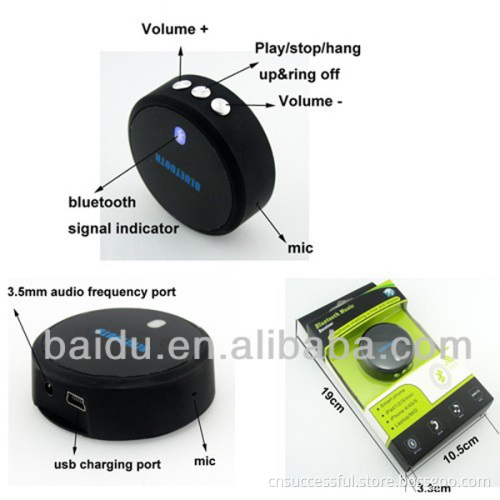

3 press key, 1 microphone, 1 standard 3.5MM voice frequency output port and 1 mini USB power supply port.
Inner 250 mA Li- battery
NFC function is optional
Power adaptor is optional

Features:

1. Classic design.
2. Simple operation, normal speaker become hands free bluetooth speaker magically, portable for vehicle mounted systems.
3. Over length receiving distance, can reach more than 20M in open space without obstacle.
4. Super clear and flow conversation effect
5. NFC function per your option make connecting much easier and more convenient
6. Bluetooth signal light effect make it much elegant and noble.
7. Adaptor or computer USB to charging is per your option.
8. Inner Li-battery, over length battery working time, low power consumption.
9. Support mobile, computer, iPhone, iPad, MID and so on product that with bluetooth function.

User guide:

Step 1. Connect with or vehicle mounted system with 3.5. Long press the middle key to turn on it.

Step 2. Turn on the Bluetooth function of iPad/iPhone/computer/smart phone, search and match;

Step 3. When devices show connected successfully, it can play music;

Step 4. According to your favour, you can choose the music or adjust the volume by short or long press left /right key;

Step 5. When the call comes, short press the middle key to answer the calling or long press to refuse it;
Step 6. Short press middle key to play or stop, long press the middle key to turn off the Bluetooth.
