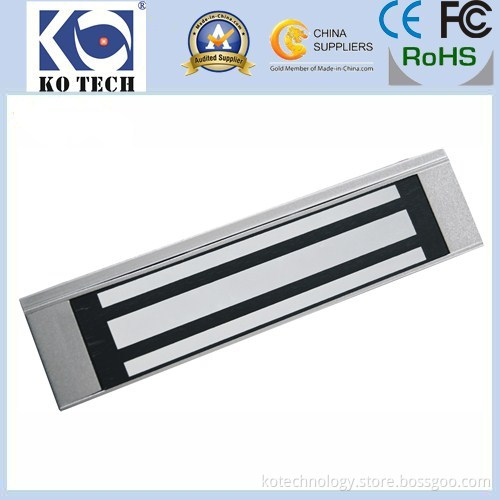

Glass Door Magnetic Lock KO-180A

Lock Dimension: 170Lx41.5Wx21H(mm)
Armature Plate Dimension: 130Lx33Wx11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12/24VDC+10%
Working Current: 12V/240mA 24V/120mA
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20
Operating Temp: -10~+55(14-131F)
Humidity: 0~90%(non-condensing)
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Weight: 1.1KG
Collinear Load Test 180kg, 350pounds
Voltage 12 or 24 VDC(optional).
The Standad Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magneism Designed.
High Strength Material, Anodized Aluminum Housing.
Design with no Mechanical Bolt.
Increase the holding Force, Dual Insulative Hosing.
CECertificate by European Union, MA Certificate by China Public Security Office
