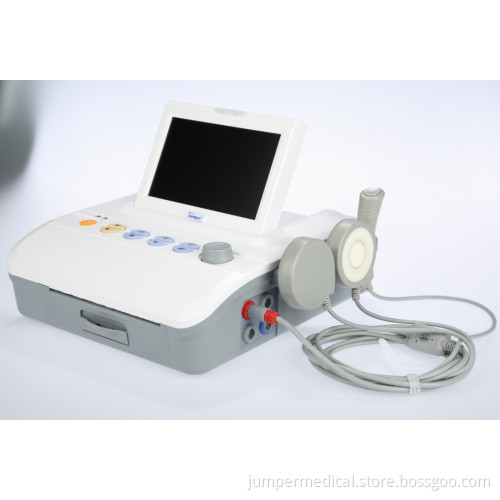

Fetal Monitor Jpd-300p 7 Inch, CE Marked

New Fetal Monitor JPD-300P 7 inch with fetal stimulator fuction, CE marked.

Features:

Display: High Brightness 7 inch TFT color screen. Folding up to 90 degree.
Lightweight, Space-saving, easy operation.
Battery indication, pregnant No. Display.
Standard Configure: FHR, TOCO and Fetal movement, with digital and curve display.
DSP technology, real time identify and measurement for FHR, accurate and reliable results.
Five display interfaces in different styles.
Special high sensitive transducer.
Built-in 152mm long time thermal printer.
Alarm System.
More than 24 hours data storage which can be playback and printed.
Special patient event and clinical event marking bottom.
Low ultrasound power, safe to fetal.
Wide range of applying voltage(100-240V).
Manual/Auto test FM.

Options:

Maternal SpO2, HR, NIBP and Temperature measurement.
Maternal ECG and PR measurement.
Twins monitor interface, twin FHR measurement.
Built-in network/PC connecting interface.
FAS( Fetal Acoustic Stimulator)

Specification:

Fetal Heart Rate:
Transducer: Multi-crystals, pulsed doppler, high sensitively
Strength: <5mW/cm2
Working frequency: 1.0MHz
Signal processing: Special DSP system and modern recognization.
Measurement range: 50~210 bpm
Alarm Range:
High limit: 160, 170, 180, 190 bpm
Low limit: 90, 100, 110, 120 bpm
Maximum audio output power: 1.5 Watt
Toco:
Measurement range: 0~100 units
Maternal SpO2 measure:
Measure scope: 70%~99%.
Measure accuracy: ± 3%
Pregnant HR Measure:
Measure scope: 30bpm~240bpm
Measure accuracy: ± 2 bpm
NIBP measure:
A) NIBP-SYS (6.7~32.0Kpa)(50~240mmHg)
B) NIBP-DIA (3.4~26.6Kpa)(25~200mmHg)
C) NIBP-MEAN(2.0~24.0ka(15~180mmHg)
NIBP Accuracy: ± 1.1kPa(± 8mmHg)or ± 5% of the results, take the bigger one.
Maximum Mean error: ± 5mmHg
Maximum Standard deviation: 8mmHg
Pulse Rate Accuracy: Maximum Mean error: ± 2bpm
Measure accuracy: ± 2 bpm or ± 5% of the results, take the bigger one.
Measure mode: Manual
Display:
The LCD displays FHR, TOCO, FM, maternal parameters, time, date, volume and so on, It can store and play back the data.
Power: A. C. 100-240v, 50/60Hz, d. C. 15v or 16.8v Li-ION battery
Power Consumption: < 20W
Dimension: 307 (length) × 296 (width) × 101 (height) (mm)
Net weight: Three-parameter type: 2.75kg; Nine-parameter type: 3kg. (Both does not contain accessories such as probe)
