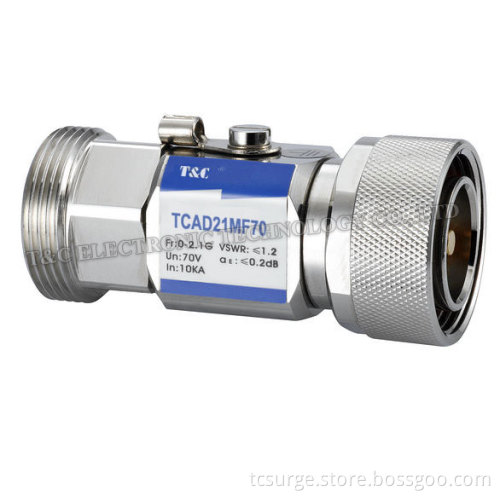

Antenna Surge Protector/Surge Arrester (TCAD21MF70)

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China
Payment Type:	T/T, Paypal, Western Union

Product Description

Feature of Surge Protective Device/ SPD:
1. Feeding current, Two-way available.
2. Heavy discharge current & Wide frequency band.
3. Famous brand of core components with excellent capability.
4. Simple structure, easy installation and maintenance.

Application:
Surge Protective Device is mainly used to protect the trransmitting & receiving system of RF signal such as satellite antenna, microwave, mobile communication and intercom system antena, radar antenna against lightning over-voltage, inducing over-voltage and static discharge.

Specification:

I/O Mode	In-Male Out-Male	In-Male Out-Female	In-Female Out-Male	Im-Female Out-Female

Code	MM	MF	FM	FF

Connector Type		DIN(7/16L29)	N	TNC	SMA	BNC	F
Code		D	N	T	S	B	F

Type	TCAN25MF70	TCAN21MF70	TCAB25MF70	TCAD21MF70	TCAF22MF230
Fr	0-2500MHz	0-2100MHz	0-2500MHz	0-2100MHz	0-2200MHz
Uc	≤70V	≤70V	≤70V	≤70V	≤230V
In	10kA	20kA	10kA	10kA	10kA
Imax	20kA	25kA	20kA	20kA	20kA
Up	≤300V	≤300V	≤300V	≤300V	≤300V
Insertion loss	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB
VSWR	≤1.2	≤1.2	≤1.2	≤1.2	≤1.2
Dimension(mm)	Φ21.5*56		Φ20*67
Connector	N-J/K	N-J/K	BNC-J/K	DIN-J/K	F-J/K
APP.	GSM,CDMA,TD,GPS	GSM,CDMA,GPS	CCTV	GSM,CDMA	TV
Re.standard	IEC61643-21; YD/T1542-2006
Environment	Temperature -40~+70°C; Relative hunidity≤95%; Altitude≤3 km
