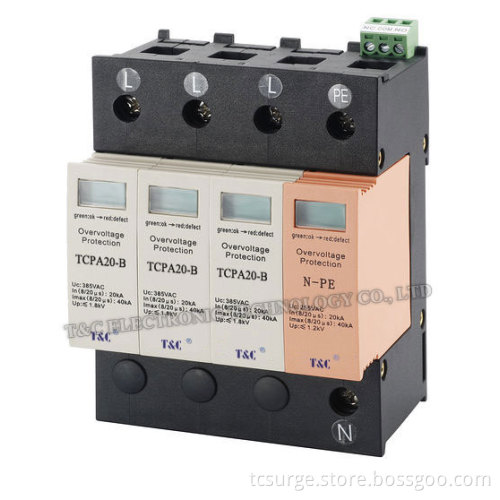

SPD/Power Surge Protection/Surge Arrester (TCPA20-B/3+NPE) with TUV Certificate

SPD/Power Surge Protection/Surge Arrester (TCPA20-B/3+NPE) with TUV Certificate

Get Latest Price

Payment Type:: T/T, Western Union, Paypal, Money Gram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong China
Payment Type:	T/T, Western Union, Paypal, Money Gram

Product Description

Features of Lightning arrester/SPD:
1. Latest exting arc technology ti avoid fire entirely.
2. Specoal impact fuse with high stablilty.
3. Remote alarm dry-contact for remote monitoring.
4. Optional lightning counter to record number of lightning strikes.
5. Famous brand if core components with excellent capability.
6. Has gotten TUV certification and meet CE standard

Modes of protection:
1. P*XX-B/2: Line-ground and neutral-ground protection.
2. P*XX-B/1+NPE: Line-neutral and neutral-ground protection.
3. P*XX-B/4: 3 line-ground and neutral-ground protection.
4. P*XX-B/3+NPE: 3 line-neutral and neutral-ground protection.

Application:
Lightning arrester is mainly opplied in the fields of secondary power system of mobile base station, microwave communication station, telecommunication room, factory, civil aviation and finance system to protect AC power cabinet against over-voltage caused by lightning.

Type	TCPA20-B/3+NPE
Insert-mode	D-mode
Category	ll level
Un	220 V
Uc	385V; 255V(N-PE)
In	20kA
Imax	40kA
Up	L-N:≤1800V,N-PE:≤1200V
Ta	≤25ns(L-N); ≤100ns(N-PE)
Mounting/IP level	35mm DIN-rail /IP20
Re.standard	TUV(EN61643-11)
Remote signal	NC Normal close; COM Common point; NO Normally open
Dimension(mm)	957266
Environment	Temperature -40~+70°C; Relative hunidity9≤5%; Altitude≤3 km
