220V to 24VDC Step-up DC-DC Converter

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, Guangdong
Payment Type:	T/T, Paypal, Western Union

Product Description

Generalization:

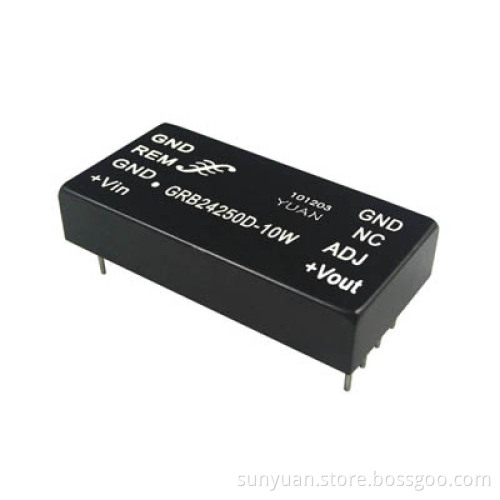

Sunyuan GRB Series DC DC Converters adopt the advanced DC-DC conversion and pressor technology, the unique vacuum insulation and encapsulation technical design, the metal shield case, which have the following characteristics: Moisture-proof, shockproof, high efficiency, low noise, low temperature drift, anti-EMC electro-magnetic interference, etc. The modules are widely used in mine exploration, metallurgy, optical control technology, medical equipment, physical and chemical experimental analysis, etc.
Voltage Input: 4.5-9VDC, 9-18VDC, 18-36VDC Standard(2: 1)wide voltage range input.
Output power consumption: 2-10W.
Voltage output: 80VDC, 100VDC, 110VDC, 150VDC, 200VDC, 250VDC, have OTP, OCP, UVL, SCP poly-protection functions.

Product Model	Input Volt.(VDC)		Output Volt. (VDC)	Output Current (mA)	Efficiency(%)
Product Model	Nominal Value	Input Range	Output Volt. (VDC)	Output Current (mA)	Efficiency(%)
GRB12110D-2W5-A	12 .0	9.0~18.0	110	23	83
GRB12150D-2W-A	12 .0	9.0~18.0	150	14	83
GRB12250D-2W-A	12 .0	9.0~18.0	250	8	85
GRB24110D-2W-A	24 .0	18.0~36.0	110	18	83
GRB24250D-2W-A	24 .0	18.0~36.0	150	8	86
GRB12110D-3W-A	12 .0	9.0~18.0	110	27	83
GRB12150D-3W-A	12 .0	9.0~18.0	150	20	83
GRB12250D-3W-A	12 .0	9.0~18.0	250	12	85
GRB24110D-3W-A	24 .0	18.0~36.0	110	27	82
GRB24150D-3W-A	24 .0	18.0~36.0	150	20	83
GRB24250D-3W-A	24 .0	18.0~36.0	250	12	85
GRB12150D-5W-A	12 .0	9.0~18.0	150	34	85
GRB12250D-5W-A	12 .0	9.0~18.0	250	20	86
GRB24110D-5W-B	24 .0	18.0~36.0	110	45	85
GRB24150D-5W-B	24 .0	18.0~36.0	150	34	87
GRB24250D-5W-B	24 .0	18.0~36.0	250	20	88
GRB12150D-2W-B	12 .0	9.0~18.0	150	14	83
GRB12250D-2W-B	12 .0	9.0~18.0	250	8	85
GRB24110D-2W-B	24 .0	18.0~36.0	110	18	83
GRB24250D-2W-B	24 .0	18.0~36.0	150	8	86
GRB12110D-3W-B	12 .0	9.0~18.0	110	27	83
GRB12150D-3W-B	12 .0	9.0~18.0	150	20	83
GRB12250D-3W-B	12 .0	9.0~18.0	250	12	85
GRB24110D-3W-B	24 .0	18.0~36.0	110	27	82
GRB24150D-3W-B	24 .0	18.0~36.0	150	20	83
GRB24250D-3W-B	24 .0	18.0~36.0	250	12	85
GRB12150D-5W-B	12 .0	9.0~18.0	150	34	85
GRB12250D-5W-B	12 .0	9.0~18.0	250	20	86
GRB24110D-5W-B	24 .0	18.0~36.0	110	45	85
GRB24150D-5W-B	24 .0	18.0~36.0	150	34	87
GRB24250D-5W-B	24 .0	18.0~36.0	250	20	88
GRB12110D-6W-B	12 .0	9.0~18.0	110	55	83
GRB12150D-6W-B	12 .0	9.0~18.0	150	40	83
GRB12250D-6W-B	12 .0	9.0~18.0	250	25	80
GRB24110D-6W-B	24 .0	18.0~36.0	110	55	83
GRB24150D-6W-B	24 .0	18.0~36.0	150	40	83
GRB24250D-6W-B	24 .0	18.0~36.0	250	25	83
GRB12100D-8W-B	12 .0	9.0~18.0	100	80	83
GRB12150D-8W-B	12 .0	9.0~18.0	150	50	80
GRB12250D-8W-B	12 .0	9.0~18.0	250	30	82
GRB24100D-8W-B	24.0	18.0~36.0	100	80	83
GRB12250D-10W-B	12 .0	9.0~18.0	250	40	85
GRB12100D-10W-B	12 .0	9.0~18.0	100	100	80
GRB12150D-10W-B	12 .0	9.0~18.0	150	67	82
GRB24100D-10W-B	24 .0	18.0~36.0	100	100	82
GRB24150D-10W-B	24 .0	18.0~36.0	150	67	83
GRB24250D-10W-B	24 .0	18.0~36.0	250	40	85
