1W Fixed Input High Isolated DC-DC Converter (G(H) 1W)

Features:

Positive Cathode Voltage Output
High Power Density
Small Footprint
Rated 1W output
7Pin SIP and 14Pin DIP Package Style
G: Dual Output Voltage H: Single output voltage
Industrial Standard Pin-out
UL94-VO Package
No Heat Sink Required
6kVDC Isolation
Fixed Input Voltage
Unregulated Output Voltage
Temperature Rang: -40 ~+85
PCB Mounting
No External Components Required
Custom Service Available

Model selection:

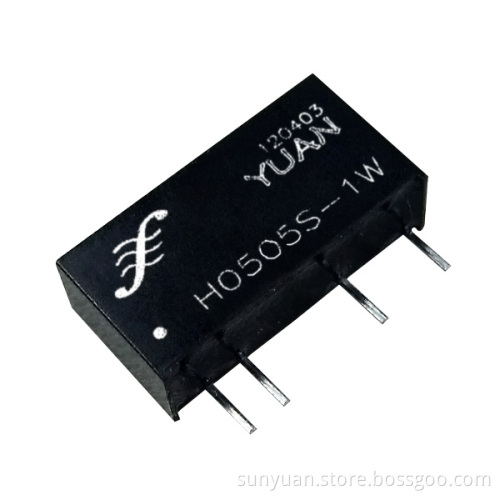

G/H 0505S-1W

G: Dual output S: Single output
05: Input voltage
05: Output voltage
S: SIP
1W: Output power
