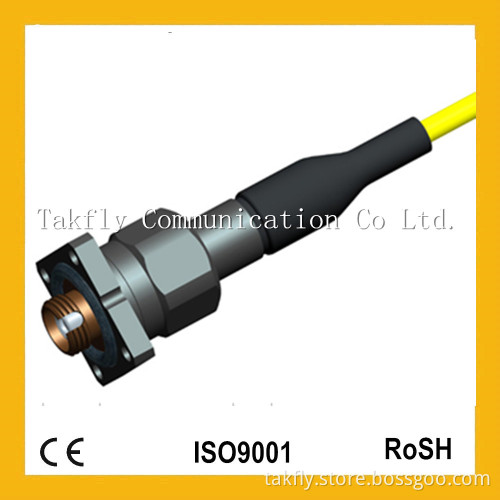

IP67 Simplex Industrial Outdoor Anti-Explosion Waterproof FC Fiber Optic/Connector

The ODC connectors together with the support optical cable, are becoming the standard interface specified in 3G, 4G and Wimax Bae Station remote radios and FTTA applications.
The ODC cable assembly is based on the N Type RF coas connector. However, the product is not limited to the above applications. The ODC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP67.
They are well suited for Industrial and Aerospace and Defense applications.

Features
Compact design with 2x1.25mm ferrule
Wide range of cables to be used, 5-6mm OD cable with duplex 2.0mm to 3.0mm jacketed subunits
2 Fiber, Singlemode and Multimode
Fulfills performance Standard IEC61753-1 Cat.E
Simple assembly requiring no special tools
Screwed locking mechanism
Water proof, dust proof and corrosion resistant, protection caps
The separate side can be used FC LC ST or SC.

Application
FTTA and FTTH
Oil & Gas, Broadcast & Industrial
