1u 19inch Fiber Optic Patch Panel

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, D/P, Paypal, Money Gram, Western Union

Product Description

Description:

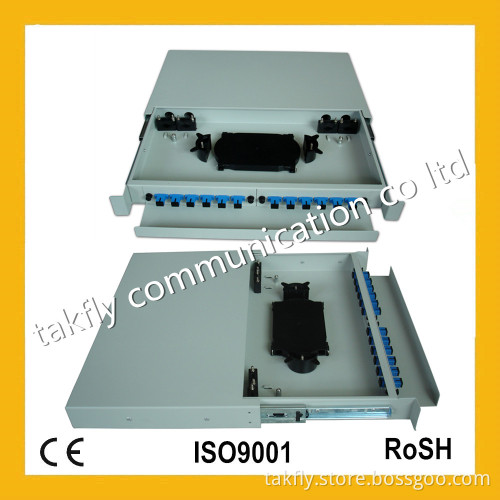

Sliding rack-mount fiber optic patch panel is with the drawer for splicing, easy to withdraw the fibers when testing and distributing. It has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved.

ODF-RS12 is with 19-inch rack for SC, ST, LC, MTRJ, FC adapters and suitable for ribbon and single fibers. Its slide out drawer is for easy cable management.

Features:
Dimension (cm): 45.0 x 32.0 x 4.45
Height: 1U
Weight (kg): 4
Capacity: 12 cores
Compact design for space saving
Various panel plates to fit different adapter interface
Standard size, light weight and reasonable structure

Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
1u 19inch Fiber Optic Patch Panel

1u 19inch Fiber Optic Patch Panel

Item	Model	Description	Dimension(cm)	cores
Item	Model	Description	Dimension(cm)	cores
1	ODF-RS96	Slidable rack-mount	48x32x11	96
2	ODF-OW48	Outdoor wall type	46.5x 38.3x 15.5	48
3	ODF-OW12/24	Outdoor wall type	46.5x 38.3x 11	12/24
4	ODF-OW72	Outdoor wall type	56 x 48 x 21.2	72
5	ODF-OW96	Outdoor wall type	56 x 48 x 26.5	96
6	ODF-OW24A	Outdoor wall type It can be wall mounted or pole mounted	46x41x9	24
7	ODF-IW12B	Indoor wall type	30x30x8.5	12
8	ODF-IW12/24	Indoor wall type	40.5x38.2x8.5	12/24
9	ODF-IW48	Indoor wall type	40x38x14	48
10	ODF-R24	Rack-mount	49x30.5x8.9	24
11	ODF-R36	Rack-mount	49x30.5x8.9	36
12	ODF-R48	Rack-mount	49x30.5x13.35	48
13	ODF-R72	Rack-mount	49x30.5x17.8	72
14	ODF-R96	Rack-mount	49x30.5x22.25	96
15	ODF-RF12	Fixed rack-mount	42x30x4.45	12
16	ODF-RF24	Fixed rack-mount	42x30x4.45	24
17	ODF-RF48	Fixed rack-mount	49x30x8.9	48
18	ODF-RS12	Slidable rack-mount	45x 32x4.45	12
19	ODF-RS24	Slidable rack-mount	45x 32x4.45	24
20	ODF-RS48	Slidable rack-mount	48x32x8.9	48
21	ODF1900	high intensity and anti-erosion imported cabinet body	220X80X40	1900
