Industrial Grade Series Media Converter

DF-TK706 series of industrial fiber media converter are designed for industrial development in one of industrial-grade transceivers, It can work in the harsh industrial electromagnetic environments for industrial Ethernet devices, over long distances via optical fiber and anti-electromagnetic interference with communications, suitable for different regions in China temperature environments, networking for industrial control systems provide a convenient, reliable way.
Introduction

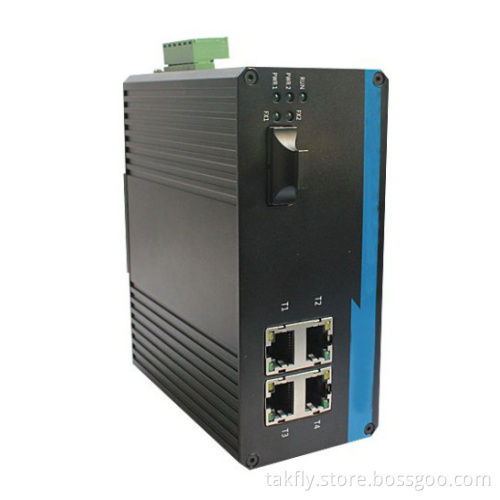

DF-TK706 is a speediness 10/100/1000Base-TX Industrial Ethernet Media Converter, easy to connect server, repeater, switch, device to device, Can satisfy customers require for long distance, high speed, wide broadcast. DF-TK706 supports 4 TP ports and 2 fiber ports. TP(RJ45) support 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000BaseFX supports
Single-/multi-mode, SC/ST connector, optional.
DF-TK706 adopt industry standard design, IP40 protection, power supply input(9V~36VDC), -40 to 80° C working temperature.
Key Features
Ø IEEE802.3/802.3u/802.3x, store and forward
Ø Plug-and-play, easy to installation
Ø 10/100/1000M, F/H duplex, MDI/MDI-X auto negotiation
Ø -40º C to 75º C operating temperature range
Ø Designed for industrial applications. IP40 protection
Specification
Ø Standards: Comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
Ø RJ45 port rate: 10/100/1000BaseT(X) auto connection, F /H duplex or force work mode, and support MDI/MDI-X connection
Ø Fiber Ports: 1000BaseFX ports (SC/ST connector, optional)
Ø Typicalmn100Base-FX: Multi-mode: 155Mbps, 1310nm, 2Km, average output≥ -18dBm, sensitivity≤ -35dB Single-mode: 155Mbps, 1310nm, 20Km, average output≥ -12dBm, sensitivity≤ -36dBm
Power Input options
Ø Input Voltage: 24VDC(9~36V DC)
Ø Opposite connection protection
Environmental Limits
Ø Operating Temperature: -40 º Cto +80º C
Ø Storage Temperature: -45º C to +85º C
Ø Relative Humidity: 5% to 95% (non-condensing)
Mechanical Dimension
Ø Dimensions: 60.5 x 118 x 140 mm
Ø House Protection: IP40 protection, Aluminium Alloy
Ø Installation: DIN-Rail or wall mounting
Ø Weight: 650g
Approvals
Ø EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
Ø EMS:
O EN61000-4-2 (ESD), Level 3
O EN61000-4-3 (RS), Level 3
O EN61000-4-4 (EFT), Level 3
O EN61000-4-5 (Surge), Level 3
O EN61000-4-6 (CS), Level 3
O EN61000-4-8, Level 3
Ø Shock: IEC 60068-2-27
Ø Free Fall: IEC 60068-2-32
Ø Vibration: IEC 60068-2-6
Warranty
Ø 5 years
