Product Description

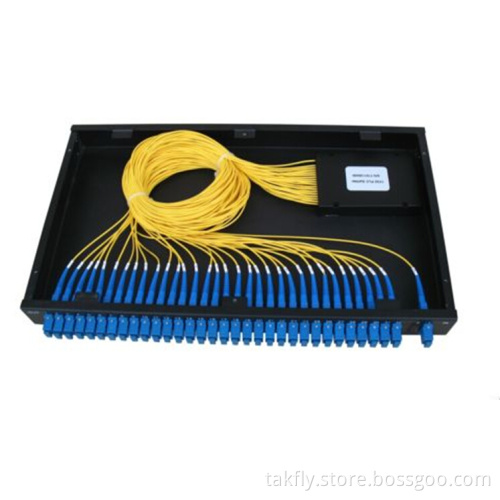

Rack Mount PLC 1X32 PLC Splitter Module

Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40° C to 85° C
High Reliability and Stability

Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

Compliance
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

Ports		1x2	2x2	1x4	2x4	1x8	2x8	1x16	2x16	1x32	2x32	1x64	2x64
Operating Wavelengths(nm)		1260~1650
Insertion Loss(dB)	Max P/S	4.0	4.0	7.3	7.6	10.5	11.0	13.5	14.4	16.5	17.5	20.5	21.0
Loss Uniformity(dB)	Max	0.4	0.6	0.6	0.8	0.8	1.2	1.2	1.5	1.5	2.0	2.0	2.2
PDL(dB)	Max	0.2	0.2	0.2	0.2	0.2	0.3	0.25	0.3	0.3	0.4	0.35	0.4
Return Loss(dB)	Min	UPC: 50 APC: 55
Directivity(dB)	Min	55
Input Fiber		Bend Insenstive SM Fiber(ITU G657A)
Output Fiber		Bend Insenstive SM Fiber(ITU G657A)
Max. Optic Power(mw)		300
Humidity Range(rh)		5% ~ 85%
Opreating Temperature(° C)		-40 ~ 85
Storage Temperature(° C)		-40 ~ 85
Packaing Option		Bare Device, Mini Tube, ABS Module, LGX BOX, 19' 1U 2U Rack-Mount
Mini Tube(Metal) Dimension(mm) (LxWxH)		50x4x4		50x7x4		50x7x4		60x12x4		80x20x6		100x40x6
ABS Module Dimension(mm) (LxWxH)		100x80x10		100x80x10		100x80x10		120x80x18		120x80x18		140x115x18
BOX Dimension(mm) (LxWxH)		LGX BOX, 19' 1U 2U Rack-Mount
