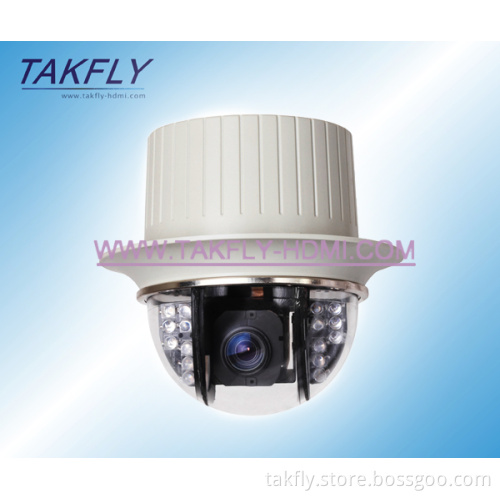

Df-713A Series IP Network High-Speed Dome/IP Network Dome

DF-713A series The main parameters of IP network high-speed dome

Defini130W/200W high tion Speed Dome Cameras

0.9degree of stepper motor driver, the use of sophisticated 1/64 intervalsubdivision drive motor drive circuit, stable running, quiet high-speed, accurate positioning

High precisionpreset point, low noise design

The screen display time and yuntai horizontal andvertical position, the ball inside the machine working temperature
Compatible with a variety of control protocol; Standard 485 communication interface
Power automatic recovery function

32-bit processor control

Level speed: 0.1 to 50 ° / SEC, class of 128

The vertical speed: 0.1-40 ° / SEC, class of 85

Continuous level 10.360 ° Rotation, yuntai scanning accuracy: + / - 0.1 °

Preset point speed: 50 ° / s.

0 ° To 90 ° Vertical rotation, automatically at the bottom of the turn 180 °

The leading focal distance/ Speed automatic matching technology

Free call the preset point, preset point automatically patrol, track record, etc

Automatic focusing, automatic aperture, built-in surge and lightning protection device

Power off before state memory and telephone automatic recovery function

Menu setting, 256 preset point 6 preset tour path

Compatible with a variety of control protocol; Standard 485 communication interface

Built-in high voltage and lightning protection circuit

The name of the camera, preset point can be set

Four track record path (The self-learning function)

The camera agreement automatically identify

10 highlight dot-matrix osram lamp, effective distance is 120-150 - m, far and near infrared light can be set

Supports IE remote viewing, IE by password remote management, streaming media forwarding, mobile hd
Monitor

Support network hd output, analog output, support domain automatic parsing

Support network abnormal self-recovery function, network interruption automatic connection

Adopts the design of embedded RTOS dual-core 32-bit DSP processor (TI Da Vinci DM365/368), pure hard
Pressure, 128 MB of FLASH, 128 m DDR2

H. 264 video coding technology, support double stream, AVI format, support stream 0.1 ~ 6 MPBS is adjustable

The performance parameters

Horizontal rotation: Continuous rotating 360 degrees

Automatic flip vertical rotation: 180 degrees, no blind spots

Level speed: 0.1-50 degrees per second

Vertical speed: 0.1-40 degrees per second

Preset points: 256

Cruise line: 5 set of editable, linkage point 16 preset in each group

Trace: Multiple scenarios

Multipoint scanning: Residence time is adjustable

Guard: Yes

Two points Scan: YES

Cruise: Various style of scan

Communication baud rate: (RS-485)2400/4800/9600/19200bps

Address range: 0-255

The structural parameters

The ball on the cover: High strength double aluminum alloy cover, high temperature resistant, fight corrode

Installation method: Lifting/wall

Installation environment: Indoor/outdoor

The input voltage: 12V5A

Working temperature: -30-+60
