Rg 179b/U High Frequency FEP Coaxial Cable

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

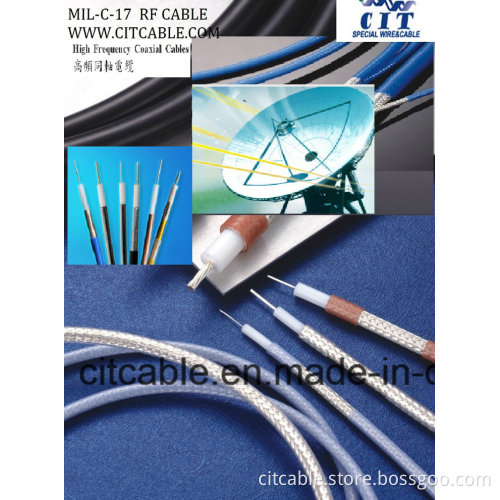

179B/U High Frequency FEP coaxial cable

Structure parameter:

Inner ConductorSilver-Plated Copper; Silver-Plated Copper-Clad Steel0.305mm
DielectricPoly(tetrafluoroethylene)(PTFE)1.60mm
Outer ConductorSilver-plated Copper2.11mm
JacketFluorinated ethylene propylene(FEP)2.54mm
Electrical Data:

Impedance, nominal70ohms
Velocity of Propagation, nominal70%
Signal delay, nominal4.7ns/m
Capacitance, nominal65 pF/m
Insulation resistance, nominal1500 MΩ /KM
Voltage withstand(AC)2000V rms/min
Machanical Data:

Minimum single bend radius10mm
Max Working voltage1200VMS
Max Working Frequency1000MHZ
Min. Bending radius (for bending once)26mm
Maximun tensile strength2.8kg
Weight of cable15.1g/m
Attenuation And Power:

Ferquency(MHZ)Attenuation(dB/m)Power(Watts CW)
100 0.31880
400 0.57420
900 0.86270
1000 0.91260
1800 1.23190
2400 1.42160
3000 1.60155
5000 2.08110
6000 2.28100
