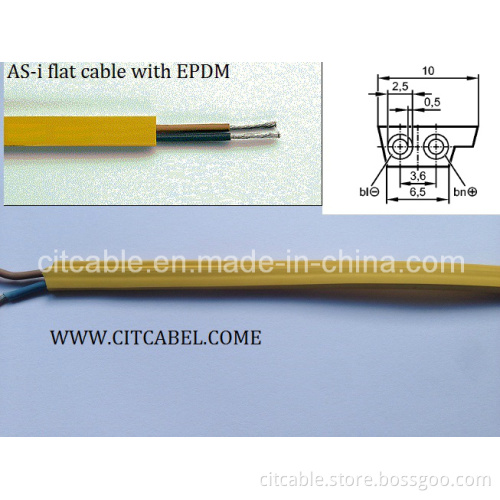

AS-I Flat Cable (CIT-CSR022D)

Reverse polarity protection due to Special shape

AS-I flat cable

Enclosure rating: IP 67
Accessories (group): AS-I falt cable
Conductor cross-section: 1.5 mm²
Positive line: : Braun, (brown)
Negative line: : Blau, ( blue )
AS-Interface product group: : AS-Interface accessories
Cable material: EPDM, Yellow

Application 125° C Temperature
Conductor Material Tin Copper
Conductor Type 32AWG to 8AWG
Insulation Material EPDM
Jacket EPDM


Special Features

Our range of 125 Temperature EPDM Electrical Installation Wire is available with following features: - Insulating layer have very good adhesion with epoxy resin adn polyester resin,

Most air conditioning electromagnetic valve coil manufacturers have been using this product, And get very high praise.

Long-term work allowed at temperature 125,

Short circuit at temperature 250,

This wire can still maintain normal insulation performance

After several times impact test from 40 to -180, this wire also can maintain the insulating properties like normal temperature
Specifications: * Rated temperature: 125
* Rated voltage: 600V
* Referencestandard: UL758, UL1581, CSA C22.2
* Passes UL VW-1 and CSA FT2 flame test
* Uniform insulation thickness to ensure easy stripping and cutting
* For Air conditioning electromagnetic valve coil, motor leads internal wiring of appliance

EPDM Cable (125° C) 600 Volts


EPDM Cable Applications:
For use in insulation displacement connector technology for FC lower parts and compact modules
Reverse polarity protection due to special shape
